PLUS F20 - ECO

Share to:
F20 is a professional and high quality folding electric bicycle. Equipped with 350 watts motor and 48 volts battery, fat tire e-bike F20 is your best choice for city riding. The folding design is easy to operate and makes it convenient to transport.  It's street legal in the USA and Europe and no license or registration is required (where applicable, see local laws and regulations).
MOTOR:
BATTERY:
Color:
Availability:
Quantity:

f202

小图标

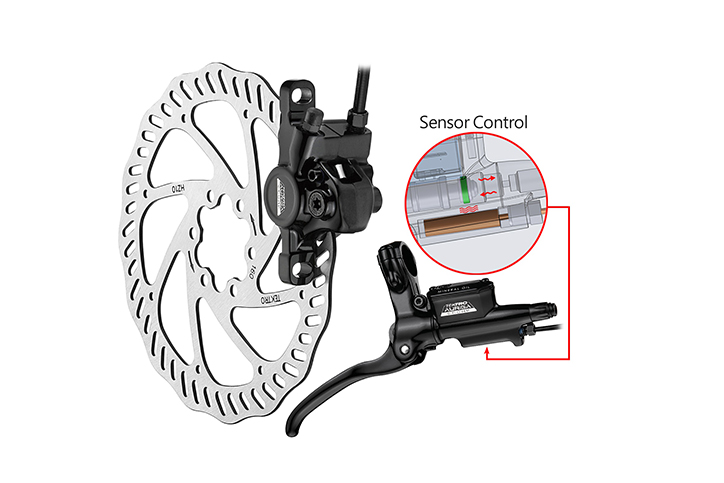

F20-BRAKE

BRAKE

Tektro Dorado HD-E500 Hydraulic Disc with 180mm Rotors, Dual-Piston Calipers, Tektro HD-E500 Three-Finger Adjustable Levers with Motor Inhibitors and Shift Detection.




MOTOR

MOTOR

  • BAFANG REAR MOTOR

    Rated Power: 350W/500W/750W/1000W

  • BAFANG ALLOY ONE-WHEEL REAR MOTOR

    Rated Power:750W




_MG_9162

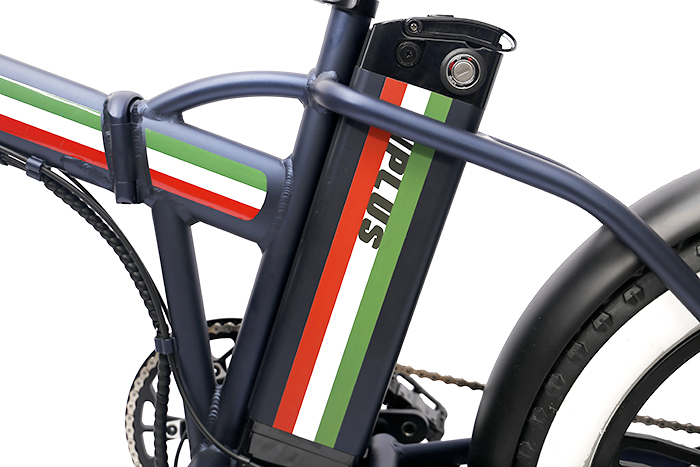

BATTERY

SAMSUNG LI-ION BATTERY

MODEL:SILVER FISH

Standerd:48V 17.5Ah
Option: 48V 13Ah / 21Ah



_MG_9157

Front FoRk

MOZO-FAT-50 20"Fat Tire Use ( alloy tube )

·Light, safe and easy operating design.

·Suspension function could be locked directly from the knob on the fork crown.

·Just one easy turning on the fork knob to makes your suspension fork goes rigid.

·Hydraulic rebound adjust offer the wide rangeoof damping performance to meet the riding demand.





935a0e9885010cb3479d5811bb5288e

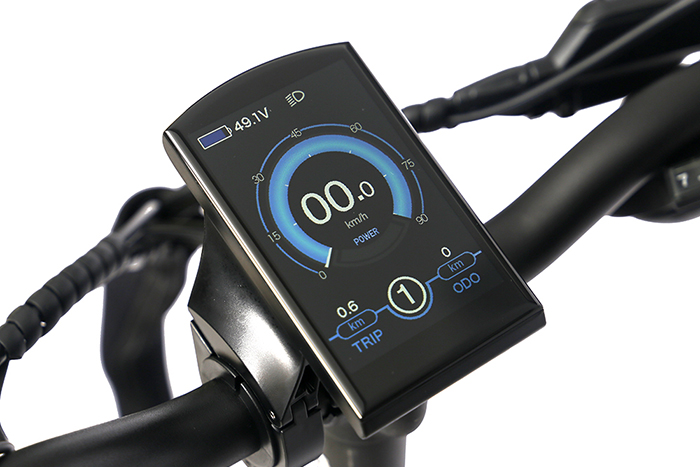

DISPLAY

KD986

E-bike Intelligent LCD display

Waterproof Rating: IP67

Display Type:HIGH Luminance TFT

Voltage:48v

PAS Level:0-5




_MG_9170

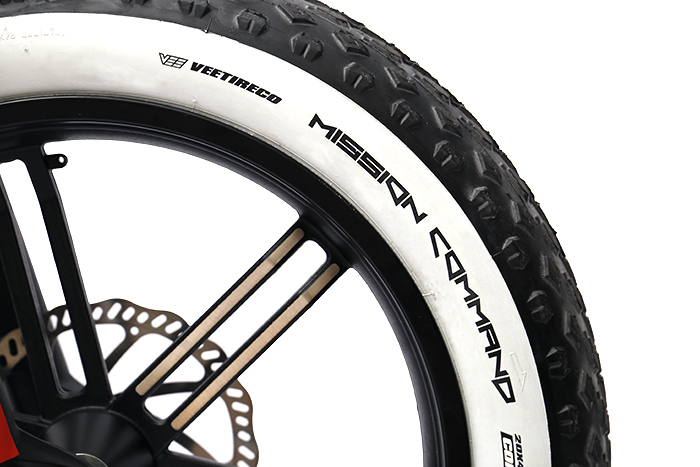

TIRES

VEE MISSION 20 x 4.0

Designed for all types of cross-country, trail riding and endurance racing, Mission is one of our most versatile and proven designs. Its chiseled center knobs are fast rolling combined with excellent corning knobs for confident grip and ultimate control no matter where the trail takes you.






ELECTRIC BIKE COMPONENTS


MODEL: PLUS F20
     Fat E-Bike
< ECO   >
    48V500W
    48V13Ah
< PRO   >
    48V750W
    48V17.5Ah
< UPHILL   >
    48V1000W(F&R 500W)
    48V21Ah
< RACING   >
    48V1500W
    52V25AH

E

L

E

C

T

R

I

C

.

S

Y

S

T

E

M

Motor BAFANG   48V 500W
    Brushless Rear-Mounted Geared Hub Motor
BAFANG   48V 750W
    Brushless Rear-Mounted Geared Hub Motor
BAFANG   48V 1000W  (Front & Rear   48V500W)
    Brushless Rear-Mounted Geared Hub Motor
PLUS   52V 1500W
    Brushless Rear-Mounted Geared Hub Motor
Battery 48V   13 Ah SAMSUNG 35E battery core
    Battery box: waterproof improved model
48V   21 Ah SAMSUNG 35E battery core
    Battery box: waterproof improved model
48V   21 Ah SAMSUNG 35E battery core
    Battery box: waterproof improved model
52   V 25Ah LG 3500E battery core
    Battery box: waterproof improved model
Controller SARMPOWER   Exclusive design —— waterproof controller
    Output current 25A
SARMPOWER   Exclusive design —— waterproof controller
    Output current 25A
SARMPOWER   Exclusive design —— waterproof controller
    Output current 25A *2
SARMPOWER   Exclusive design —— waterproof controller
    Output current 40A
Display KDS(OEM   Of BAFANG)
    Mid-LCD  alloy display KD716

KDS(OEM   Of BAFANG)
    Mid-LCD  alloy display KD716

KDS(OEM   Of BAFANG)
    Mid-LCD  alloy display KD986

KDS(OEM   Of BAFANG)
    Mid-LCD  alloy display KD986

Charger D-POWER   Charger 48V Dedicated
    2A  Charger
D-POWER   Charger 48V Dedicated
    3A Fast Charger
D-POWER   Charger 48V Dedicated
    3A Fast Charger
D-POWER   Charger 48V Dedicated
    3A Fast Charger
Sensor MS   Double hall Integrated sensor 12 T MS   Double hall Integrated sensor 12 T MS   Double hall Integrated sensor 12 T MS   Double hall Integrated sensor 12 T
Throttle STAR-UNION   Throttle ( Finger Press ) STAR-UNION   Throttle ( Finger Press ) STAR-UNION   Throttle ( Finger Press ) STAR-UNION   Throttle ( Finger Press )
Rear Light
YL YL YL
Button STAR-UNION   Approvals/RoHS STAR-UNION   Approvals/RoHS STAR-UNION   Approvals/RoHS STAR-UNION   Approvals/RoHS
Light SPANNIAPA   KENDO Double Light with Electric bell SPANNIAPA   KENDO Double Light with Electric bell

SPANNIAPA   KENDO Double Light with Electric bell

SPANNIAPA   KENDO Double Light with Electric bell


M

A

I

N

. COMPONENT

Wire JUNLEI
    Waterproof wire (All connection )
    PE plastics are used in copper wire insulation
JUNLEI
    Waterproof wire (All connection )
    PE plastics are used in copper wire insulation
JUNLEI
    Waterproof wire (All connection )
    PE plastics are used in copper wire insulation
JUNLEI
    Waterproof wire (All connection )
    PE plastics are used in copper wire insulation
Grip VELO   Alloy Ring Locked handle VELO   Alloy Ring Locked handle VELO   Alloy Ring Locked handle VELO   Alloy Ring Locked handle
Tire
    (with Inner tube )
VEE   SPEEDSTER and  with white script on   wall
    MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI,
VEE   SPEEDSTER and  with white script on   wall
    MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI,
VEE   SPEEDSTER and  with white script on   wall
    MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI,
VEE   SPEEDSTER and  with white script on   wall
    MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI,
Brake Lever TEKTRO   HD-E350  Hydraulic disc brake   Lever TEKTRO   HD-E350  Hydraulic disc brake   Lever TEKTRO   HD-E500  Hydraulic disc brake   Lever TEKTRO   HD-E500  Hydraulic disc brake Lever

Disc Brake TEKTRO   HD-E350 TEKTRO   HD-E350

TEKTRO   HD-E500

TEKTRO   HD-E500

Brake Pad TEKTRO   TR160 System Rotors TEKTRO   TR180 System Rotors

TEKTRO   TR180 System Rotors

TEKTRO   TR180 System Rotors

Transmission SHIMANO   DERAILLEUR TZ500
    REAR SPEEDS           7
SHIMANO   DERAILLEUR  ALTUS 7S
    REAR SPEEDS           7
SHIMANO   DERAILLEUR ALTUS 7S
    REAR SPEEDS           7
SHIMANO   DERAILLEUR ALTUS  7S
    REAR SPEEDS           7
SHIMANO Freewheel 14-28T 7speed

SHIMANO   Freewheel MF-TZ21
     14-16-18-20-22-24-28T
SHIMANO   Freewheel MF-TZ21
     14-16-18-20-22-24-28T

SHIMANO   Freewheel MF-TZ21
     14-16-18-20-22-24-28T

Trasnsmisstion Protector Trasnsmisstion   Protector Trasnsmisstion   Protector Trasnsmisstion   Protector
SHIMANO SHIFT LEVER TX50  7-Speed SHIMANO   SHIFT LEVER SIS 7-Speed
    Mode : ACERA ALTUS SL- M360
SHIMANO   SHIFT LEVER SIS 7-Speed
    Mode : ACERA ALTUS SL- M360
SHIMANO   SHIFT LEVER SIS 7-Speed
    Mode : ACERA ALTUS SL- M360
Fork MOZO  MZ-FAT-50 20"Fat Tire Use ( alloy tube   ) RST   RS-02 20"Fat Tire Use ( hydrulic suspension fork  ) RST  RS-02 20"Fat Tire Use ( hydrulic   suspension fork  ) RST  RS-02 20"Fat Tire Use ( hydrulic   suspension fork  )
Chain PLUS   Seven-speed special chain PLUS   Seven-speed special chain KMC   Seven-speed special chain KMC   Seven-speed special chain
B.BCARTRIDGE NECO   B920AL (B920BAL) NECO   B920AL (B920BAL) NECO   B920AL (B920BAL) NECO   B920AL (B920BAL)
Dental Plate PROWHEEL   PRO-552PP-3  52T

PROWHEEL   OUNCE-253A-TT

PROWHEEL   OUNCE-253A-TT PROWHEEL   OUNCE-253A-TT
Cushion Memory   foam sponge,
    Selle Royal A230HR1008096 FREEWAY
Memory   foam sponge,
    Selle Royal A0A5UR0
Memory   foam sponge,
    Selle Royal A0A5UR0
Memory   foam sponge,
    Selle Royal A0A5UR0
Stand Up JL   Aluminum alloy foldable JL   Aluminum alloy foldable JL   Aluminum alloy foldable JL   Aluminum alloy foldable
Pedal WELLGO   Folding Alloy pdeal  F265 WELLGO   Folding Alloy pdeal  F265 WELLGO   Folding Alloy pdeal  F265 WELLGO   Folding Alloy pdeal  F265
Seat Tube ZOOM   SP-90/ISO-M ZOOM   SP-90/ISO-M ZOOM   SP-90/ISO-M ZOOM   SP-90/ISO-M
Foot Support URSUS   ALLOY ADJUSTABLE KICKSTAND URSUS   ALLOY ADJUSTABLE KICKSTAND URSUS   ALLOY ADJUSTABLE KICKSTAND URSUS   ALLOY ADJUSTABLE KICKSTAND
Rims AOLI   AL-RRY-307 (black)
    Double level Rim /Alloy 7071(Suitable for 20" )
BAFANG   MAG WHEEL AOLI  AL-RRY-307(black)
    Double level Rim /Alloy 7071(Suitable for 20" )
AOLI  AL-RRY-307(black)
    Double level Rim /Alloy 7071(Suitable for 20" )
Handlebar ZOOM   MTB-AL-345BT FOV/ISO-M ZOOM   MTB-AL-345BT FOV/ISO-M ZOOM   MTB-AL-345BT FOV/ISO-M ZOOM   MTB-AL-345BT FOV/ISO-M
Hubs VP   sds3359 BAFANG VP   sds3359 VP   sds3359
Clamp ZOOM   Custom
     Alloy 7071 , Size : 27.2
SARMPOWER   Custom
     Alloy 7071 , Size : 27.2
SARMPOWER   Custom
     Alloy 7071 , Size : 27.2
ZOOM   Custom
     Alloy 7071 , Size : 27.2
Frame PLUS   New Desgin  , solved all details
    Seat Tube : 450mm
    Top tube : 564.1mm
    Rear Tube : φ25.2
PLUS   New Desgin  , solved all details
    Seat Tube : 450mm
    Top tube : 564.1mm
    Rear Tube : φ25.2
PLUS   New Desgin  , solved all details
    Seat Tube : 450mm
    Top tube : 564.1mm
    Rear Tube : φ25.2
PLUS   New Desgin  , solved all details
    Seat Tube : 410mm
    Top tube : 524.1mm
    Rear Tube : φ25.2
Print PLUS   BLACK / WHITE /GREY/custom made PLUS   BLACK / WHITE /GREY/custom made PLUS   BLACK / WHITE /GREY/custom made PLUS   BLACK / WHITE /GREY/custom made
Spoke SAPIM   Strong 12G ,
    Antiseptic Electrophoresis
BAFANG   MAG WHEEL SAPIM   Strong 12G ,
    Antiseptic Electrophoresis
SAPIM   Strong 12G ,
    Antiseptic Electrophoresis
Fender AOLI   Long fender  ,Alloy 7071 AOLI   Long fender  ,Alloy 7071 AOLI   Long fender  ,Alloy 7071 AOLI   Long fender  ,Alloy 7071

Rear   Rack
AOLI AOLI AOLI

Package PLUS   Best Carton this time  ,and with custom   cover  7level With Pearl cotton ,foam PLUS   Best Carton this time  ,and with custom   cover  7level With Pearl cotton ,foam PLUS   Best Carton this time  ,and with custom   cover  7level With Pearl cotton ,foam PLUS   Best Carton this time  ,and with custom   cover  7level With Pearl cotton ,foam



SOLUTION

P_MG_8956

The high-end foldable fat tire electric bike PLUS F20 is more suitable for traveling in the city. The use of internationally renowned brand accessories has passed a number of professional tests such as battery explosion-proof test, uphill test, and electronic control system test. Use strong and pressure-resistant packaging to ensure that the electric vehicle is not damaged during transportation.

As an experienced electric bicycle manufacturer and supplier from China, PLUS EBIKE always produces high-quality OEM/ODM electric bicycles including mountain e-bike, city e-bike and folding e-bike. Service centers are set up in the UK and Switzerland, and the professional team of PLUS EBIKE provides high-quality and convenient after-sales service at any time.



P_MG_8966
_MG_8931
P_MG_8953
