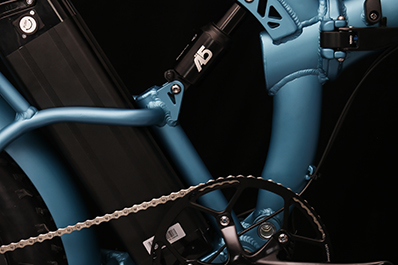

Frame FOLD 20" / AL6061 / DISK
Upgraded safer self-locking folder, double insurance, easy operation.

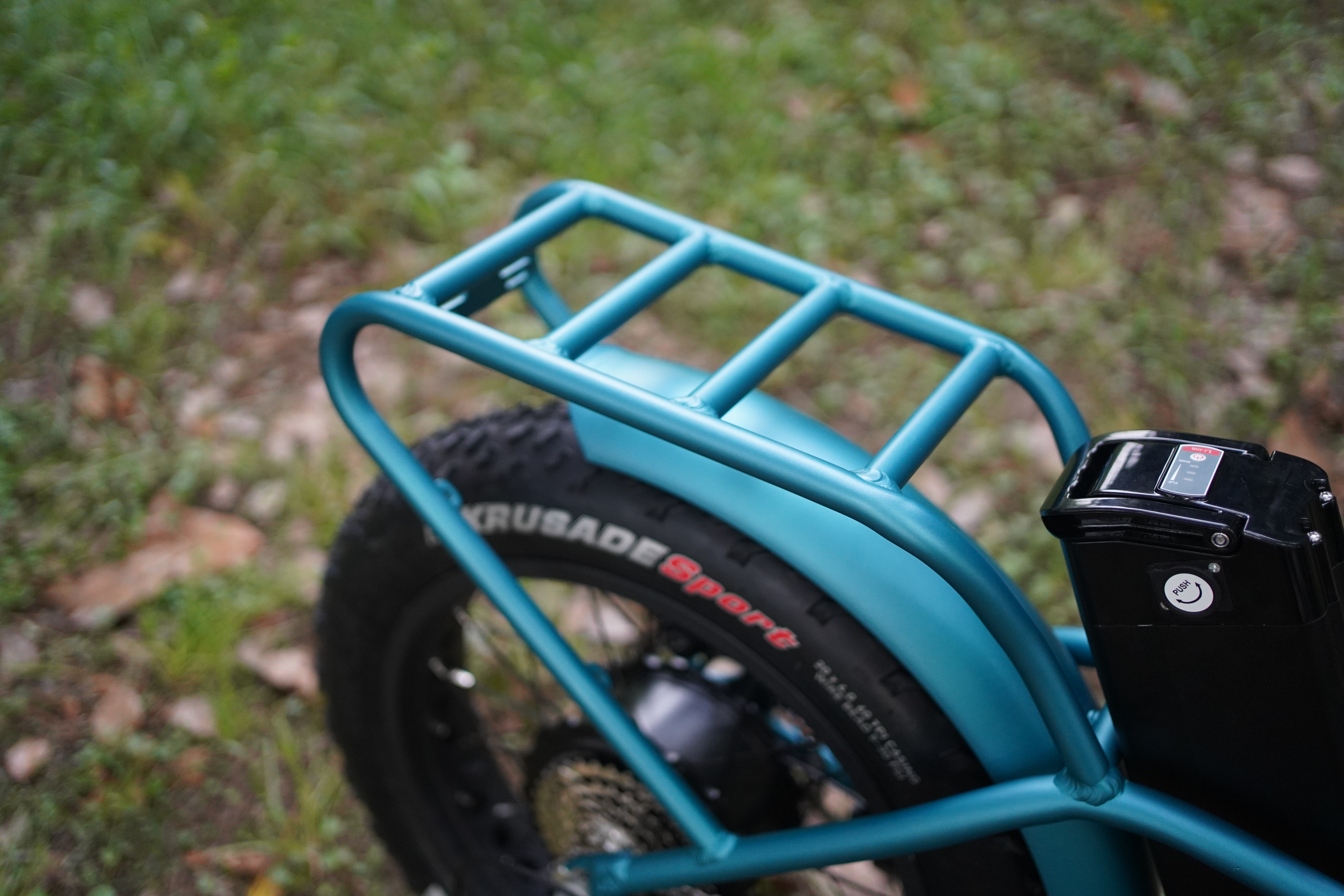

Designed holes for installing the rear hanger and foot support.
All wires pass through the inside of the frame.
PLUS EBIKE's high-power controller can be installed, and it can also be compatible with the general low-probability controller on the market. |
MOTOR
Rated Power: 350W/500W/750W/1000W
Rated Power:750W |
 BATTERYSAMSUNG LI-ION BATTERYMODEL:SILVER FISHStanderd:48V 17.5Ah |  DERAILLEUR
|
| PLUS CARRO Fat E-Bike | < ECO > 48V500W 48V13Ah | < PRO > 48V750W 48V17.5Ah | < UPHILL > 48V1000W（F&R 500W） 48V21Ah | < RACING > 48V1500W 52V25AH | |
E L E C T R I C . S Y S T E M | Motor | BAFANG 48V 500W Brushless Rear-Mounted Geared Hub Motor | BAFANG 48V 750W Brushless Rear-Mounted Geared Hub Motor | BAFANG 48V 1000W (Front & Rear 48V500W) Brushless Rear-Mounted Geared Hub Motor | PLUS 52V 1500W Brushless Rear-Mounted Geared Hub Motor |
| Battery | 48V 13Ah SAMSUNG 35E battery core Battery box: waterproof improved model | 48V 17.5Ah SAMSUNG 35E battery core Battery box: waterproof improved model | 48V 21Ah SAMSUNG 35E battery core Battery box: waterproof improved model | 52V 25Ah LG 3500E battery core Battery box: waterproof improved model | |
| Controller | SARMPOWER Exclusive design —— waterproof controller Output current 25A | SARMPOWER Exclusive design —— waterproof controller Output current 25A | SARMPOWER Exclusive design —— waterproof controller Output current 25A *2 | SARMPOWER Exclusive design —— waterproof controller Output current 40A | |
| Display | KDS (OEM Of BAFANG) Mid-LCD alloy display KD716 | KDS (OEM Of BAFANG) Mid-LCD alloy display KD716 | KDS (OEM Of BAFANG) Mid-LCD alloy display KD986 | KDS (OEM Of BAFANG) Mid-LCD alloy display KD986 | |
| Charger | D-POWER Charger 48V Dedicated 2A Charger | D-POWER Charger 48V Dedicated 3A Fast Charger | D-POWER Charger 48V Dedicated 3A Fast Charger | D-POWER Charger 48V Dedicated 3A Fast Charger | |
| Sensor | MS Double hall Integrated sensor 12 T | MS Double hall Integrated sensor 12 T | MS Double hall Integrated sensor 12 T | MS Double hall Integrated sensor 12 T | |
| Throttle | STAR-UNION Throttle ( Finger Press ) | STAR-UNION Throttle ( Finger Press ) | STAR-UNION Throttle ( Finger Press ) | STAR-UNION Throttle ( Finger Press ) | |
| / | YL | YL | YL | ||
| Button | STAR-UNION Approvals/RoHS | STAR-UNION Approvals/RoHS | STAR-UNION Approvals/RoHS | STAR-UNION Approvals/RoHS | |
| Light | SPANNIAPA KENDO Double Light with Electric bell | SPANNIAPA KENDO Double Light with Electric bell | SPANNIAPA KENDO Double Light with Electric bell | SPANNIAPA KENDO Double Light with Electric bell | |
| Wire | JUNLEI Waterproof wire (All connection) | JUNLEI Waterproof wire (All connection) | JUNLEI Waterproof wire (All connection) | JUNLEI Waterproof wire (All connection) | |
MA IN. COMPONENT | Grip | VELO Alloy Ring Locked handle | VELO Alloy Ring Locked handle | VELO Alloy Ring Locked handle | VELO Alloy Ring Locked handle |
| Tire (with Inner tube ) | VEE SPEEDSTER (with white script on wall) MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI, | VEE SPEEDSTER (with white script on wall) MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI, | VEE SPEEDSTER (with white script on wall) MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI, | VEE SPEEDSTER (with white script on wall) MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI, | |
| Brake Lever | TEKTRO HD-E350 Hydraulic disc brake Lever | TEKTRO HD-E350 Hydraulic disc brake Lever | TEKTRO HD-E500 Hydraulic disc brake Lever | TEKTRO HD-E500 Hydraulic disc brake Lever | |
| Disc Brake | TEKTRO HD-E350 | TEKTRO HD-E350 | TEKTRO HD-E500 | TEKTRO HD-E500 | |
| Brake Pad | TEKTRO SYSTEM ROTOR TR180-24 | TEKTRO SYSTEM ROTOR TR180-24 | TEKTRO SYSTEM ROTOR TR180-24 | TEKTRO SYSTEM ROTOR TR180-24 | |
| Transmission | SHIMANO DERAILLEUR TZ500 7-SPEED | SHIMANO DERAILLEUR ALTUS 7-SPEED | SHIMANO DERAILLEUR ALTUS 7-SPEED | SHIMANO DERAILLEUR ALTUS 7-SPEED | |
| SHIMANO FREEWHEEL 14-28T/7-speed | SHIMANO FREEWHEEL MF-TZ21 14-28T/7-speed | SHIMANO FREEWHEEL MF-TZ21 14-28T/7-speed | SHIMANO FREEWHEEL MF-TZ21 14-28T/7-speed | ||
| Trasnsmisstion Protector | Trasnsmisstion Protector | Trasnsmisstion Protector | Trasnsmisstion Protector | ||
| SHIMANO SHIFT TX50 7-Speed Mode : ACERA ALTUS SL- M360 | SHIMANO SHIFT SIS 7-Speed Mode : ACERA ALTUS SL- M360 | SHIMANO SHIFT SIS 7-Speed Mode : ACERA ALTUS SL- M360 | SHIMANO SHIFT SIS 7-Speed Mode : ACERA ALTUS SL- M360 | ||
| Rear Shock | BLOOKE BM-R5 ( alloy tube ) Oil pressure spring type, 165mm (Eye to Eye) | BLOOKE BM-R5 ( alloy tube ) Oil pressure spring type, 165mm (Eye to Eye) | BLOOKE BM-R5 ( alloy tube ) Oil pressure spring type, 165mm (Eye to Eye) | BLOOKE BM-R5 ( alloy tube ) Oil pressure spring type, 165mm (Eye to Eye) | |
| Fork | MOZO MZ-FAT-50 20"Fat Tire Use ( alloy tube ) | RST RS-02 20"Fat Tire Use ( hydrulic suspension fork ) | RST RS-02 20"Fat Tire Use ( hydrulic suspension fork ) | RST RS-02 20"Fat Tire Use ( hydrulic suspension fork ) | |
| Chain | PLUS Seven-speed special chain | PLUS Seven-speed special chain | KMC Seven-speed special chain | KMC Seven-speed special chain | |
| B.BCARTRIDGE | NECO B920AL (B920BAL) Axle & Alloy Cups, Steel body, Sealed Bering 2pcs | NECO B920AL (B920BAL) Axle & Alloy Cups, Steel body, Sealed Bering 2pcs | NECO B920AL (B920BAL) Axle & Alloy Cups, Steel body, Sealed Bering 2pcs | NECO B920AL (B920BAL) Axle & Alloy Cups, Steel body, Sealed Bering 2pcs | |
| Dental Plate | PROWHEEL PRO-552PP-3 52T | PROWHEEL OUNCE-253A-TT | PROWHEEL OUNCE-253A-TT | PROWHEEL OUNCE-253A-TT | |
| Cushion | YG leather | Selle Royal Memory foam sponge | Selle Royal Memory foam sponge | Selle Royal Memory foam sponge | |
| Stand Up | JL Aluminum alloy foldable | JL Aluminum alloy foldable | JL Aluminum alloy foldable | JL Aluminum alloy foldable | |
| Pedal | WELLGO Folding Alloy pdeal | WELLGO Folding Alloy pdeal | WELLGO Folding Alloy pdeal | WELLGO Folding Alloy pdeal | |
| Seat Tube | ZOOM SP-90/ISO-M Die-casting Alloy / Alloy | ZOOM SP-90/ISO-M Die-casting Alloy / Alloy | ZOOM SP-90/ISO-M Die-casting Alloy / Alloy | ZOOM SP-90/ISO-M Die-casting Alloy / Alloy | |
| Foot Support | URSUS ALLOY ADJUSTABLE KICKSTAND | URSUS ALLOY ADJUSTABLE KICKSTAND | URSUS ALLOY ADJUSTABLE KICKSTAND | URSUS ALLOY ADJUSTABLE KICKSTAND | |
| Rims | AOLI AL-RRY-307 (black) Double level Rim /Alloy 7071（Suitable for 20" ） | BAFANG MAG WHEEL | AOLI AL-RRY-307 (black) Double level Rim /Alloy 7071（Suitable for 20" ） | AOLI AL-RRY-307 (black) Double level Rim /Alloy 7071（Suitable for 20" ） | |
| Handlebar | XUXIANG | ZOOM MTB-AL-345BT FOV/ISO-M Double aluminum extraction | ZOOM MTB-AL-345BT FOV/ISO-M Double aluminum extraction | ZOOM MTB-AL-345BT FOV/ISO-M Double aluminum extraction | |
| Hubs | VP sds3359 32 hole, Disc brake | BAFANG MAG WHEEL | VP sds3359 32 hole, Disc brake | VP sds3359 32 hole, Disc brake | |
| Clamp | ZOOM Custom Alloy 7071 (Size : 27.2) | SARMPOWER Custom Alloy 7071 (Size : 27.2) | SARMPOWER Custom Alloy 7071 (Size : 27.2) | ZOOM Custom Alloy 7071 (Size : 27.2) | |
| Frame | PLUS New Desgin Seat Tube : 450mm Top tube : 564.1mm Rear Tube : φ25.2 | PLUS New Desgin Seat Tube : 450mm Top tube : 564.1mm Rear Tube : φ25.2 | PLUS New Desgin Seat Tube : 450mm Top tube : 564.1mm Rear Tube : φ25.2 | PLUS New Desgin Seat Tube : 450mm Top tube : 564.1mm Rear Tube : φ25.2 | |
| PLUS BLACK/WHITE/GREY/custom made | PLUS BLACK/WHITE/GREY/custom made | PLUS BLACK/WHITE/GREY/custom made | PLUS BLACK/WHITE/GREY/custom made | ||
| Spoke | SAPIM Strong 12G , Antiseptic Electrophoresis | BAFANG MAG WHEEL | SAPIM Strong 12G , Antiseptic Electrophoresis | SAPIM Strong 12G , Antiseptic Electrophoresis | |
| Fender | AOLI Long fender with the alloy holder Alloy 7071 | AOLI Long fender with the alloy holder Alloy 7071 | AOLI Long fender with the alloy holder Alloy 7071 | AOLI Long fender with the alloy holder Alloy 7071 | |
| Package | PLUS Best Carton, with custom cover 7level With Pearl cotton/foam | PLUS Best Carton, with custom cover 7level With Pearl cotton/foam | PLUS Best Carton, with custom cover 7level With Pearl cotton/foam | PLUS Best Carton, with custom cover 7level With Pearl cotton/foam | |
As an experienced electric bicycle manufacturer and supplier from China, PLUS EBIKE always produces high-quality OEM/ODM electric bicycles including mountain e-bike, city e-bike and folding e-bike. Set up service centers in the United Kingdom and Switzerland, and the professional team of PLUS EBIKE provides high-quality and convenient after-sales service at any time. |
 |  |  |
Frame FOLD 20" / AL6061 / DISK
Upgraded safer self-locking folder, double insurance, easy operation.
Designed holes for installing the rear hanger and foot support.
All wires pass through the inside of the frame.
PLUS EBIKE's high-power controller can be installed, and it can also be compatible with the general low-probability controller on the market. |
MOTOR
Rated Power: 350W/500W/750W/1000W
Rated Power:750W |
BATTERYSAMSUNG LI-ION BATTERYMODEL:SILVER FISHStanderd:48V 17.5Ah | DERAILLEUR
|
| PLUS CARRO Fat E-Bike | < ECO > 48V500W 48V13Ah | < PRO > 48V750W 48V17.5Ah | < UPHILL > 48V1000W（F&R 500W） 48V21Ah | < RACING > 48V1500W 52V25AH | |
E L E C T R I C . S Y S T E M | Motor | BAFANG 48V 500W Brushless Rear-Mounted Geared Hub Motor | BAFANG 48V 750W Brushless Rear-Mounted Geared Hub Motor | BAFANG 48V 1000W (Front & Rear 48V500W) Brushless Rear-Mounted Geared Hub Motor | PLUS 52V 1500W Brushless Rear-Mounted Geared Hub Motor |
| Battery | 48V 13Ah SAMSUNG 35E battery core Battery box: waterproof improved model | 48V 17.5Ah SAMSUNG 35E battery core Battery box: waterproof improved model | 48V 21Ah SAMSUNG 35E battery core Battery box: waterproof improved model | 52V 25Ah LG 3500E battery core Battery box: waterproof improved model | |
| Controller | SARMPOWER Exclusive design —— waterproof controller Output current 25A | SARMPOWER Exclusive design —— waterproof controller Output current 25A | SARMPOWER Exclusive design —— waterproof controller Output current 25A *2 | SARMPOWER Exclusive design —— waterproof controller Output current 40A | |
| Display | KDS (OEM Of BAFANG) Mid-LCD alloy display KD716 | KDS (OEM Of BAFANG) Mid-LCD alloy display KD716 | KDS (OEM Of BAFANG) Mid-LCD alloy display KD986 | KDS (OEM Of BAFANG) Mid-LCD alloy display KD986 | |
| Charger | D-POWER Charger 48V Dedicated 2A Charger | D-POWER Charger 48V Dedicated 3A Fast Charger | D-POWER Charger 48V Dedicated 3A Fast Charger | D-POWER Charger 48V Dedicated 3A Fast Charger | |
| Sensor | MS Double hall Integrated sensor 12 T | MS Double hall Integrated sensor 12 T | MS Double hall Integrated sensor 12 T | MS Double hall Integrated sensor 12 T | |
| Throttle | STAR-UNION Throttle ( Finger Press ) | STAR-UNION Throttle ( Finger Press ) | STAR-UNION Throttle ( Finger Press ) | STAR-UNION Throttle ( Finger Press ) | |
| / | YL | YL | YL | ||
| Button | STAR-UNION Approvals/RoHS | STAR-UNION Approvals/RoHS | STAR-UNION Approvals/RoHS | STAR-UNION Approvals/RoHS | |
| Light | SPANNIAPA KENDO Double Light with Electric bell | SPANNIAPA KENDO Double Light with Electric bell | SPANNIAPA KENDO Double Light with Electric bell | SPANNIAPA KENDO Double Light with Electric bell | |
| Wire | JUNLEI Waterproof wire (All connection) | JUNLEI Waterproof wire (All connection) | JUNLEI Waterproof wire (All connection) | JUNLEI Waterproof wire (All connection) | |
MA IN. COMPONENT | Grip | VELO Alloy Ring Locked handle | VELO Alloy Ring Locked handle | VELO Alloy Ring Locked handle | VELO Alloy Ring Locked handle |
| Tire (with Inner tube ) | VEE SPEEDSTER (with white script on wall) MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI, | VEE SPEEDSTER (with white script on wall) MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI, | VEE SPEEDSTER (with white script on wall) MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI, | VEE SPEEDSTER (with white script on wall) MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI, | |
| Brake Lever | TEKTRO HD-E350 Hydraulic disc brake Lever | TEKTRO HD-E350 Hydraulic disc brake Lever | TEKTRO HD-E500 Hydraulic disc brake Lever | TEKTRO HD-E500 Hydraulic disc brake Lever | |
| Disc Brake | TEKTRO HD-E350 | TEKTRO HD-E350 | TEKTRO HD-E500 | TEKTRO HD-E500 | |
| Brake Pad | TEKTRO SYSTEM ROTOR TR180-24 | TEKTRO SYSTEM ROTOR TR180-24 | TEKTRO SYSTEM ROTOR TR180-24 | TEKTRO SYSTEM ROTOR TR180-24 | |
| Transmission | SHIMANO DERAILLEUR TZ500 7-SPEED | SHIMANO DERAILLEUR ALTUS 7-SPEED | SHIMANO DERAILLEUR ALTUS 7-SPEED | SHIMANO DERAILLEUR ALTUS 7-SPEED | |
| SHIMANO FREEWHEEL 14-28T/7-speed | SHIMANO FREEWHEEL MF-TZ21 14-28T/7-speed | SHIMANO FREEWHEEL MF-TZ21 14-28T/7-speed | SHIMANO FREEWHEEL MF-TZ21 14-28T/7-speed | ||
| Trasnsmisstion Protector | Trasnsmisstion Protector | Trasnsmisstion Protector | Trasnsmisstion Protector | ||
| SHIMANO SHIFT TX50 7-Speed Mode : ACERA ALTUS SL- M360 | SHIMANO SHIFT SIS 7-Speed Mode : ACERA ALTUS SL- M360 | SHIMANO SHIFT SIS 7-Speed Mode : ACERA ALTUS SL- M360 | SHIMANO SHIFT SIS 7-Speed Mode : ACERA ALTUS SL- M360 | ||
| Rear Shock | BLOOKE BM-R5 ( alloy tube ) Oil pressure spring type, 165mm (Eye to Eye) | BLOOKE BM-R5 ( alloy tube ) Oil pressure spring type, 165mm (Eye to Eye) | BLOOKE BM-R5 ( alloy tube ) Oil pressure spring type, 165mm (Eye to Eye) | BLOOKE BM-R5 ( alloy tube ) Oil pressure spring type, 165mm (Eye to Eye) | |
| Fork | MOZO MZ-FAT-50 20"Fat Tire Use ( alloy tube ) | RST RS-02 20"Fat Tire Use ( hydrulic suspension fork ) | RST RS-02 20"Fat Tire Use ( hydrulic suspension fork ) | RST RS-02 20"Fat Tire Use ( hydrulic suspension fork ) | |
| Chain | PLUS Seven-speed special chain | PLUS Seven-speed special chain | KMC Seven-speed special chain | KMC Seven-speed special chain | |
| B.BCARTRIDGE | NECO B920AL (B920BAL) Axle & Alloy Cups, Steel body, Sealed Bering 2pcs | NECO B920AL (B920BAL) Axle & Alloy Cups, Steel body, Sealed Bering 2pcs | NECO B920AL (B920BAL) Axle & Alloy Cups, Steel body, Sealed Bering 2pcs | NECO B920AL (B920BAL) Axle & Alloy Cups, Steel body, Sealed Bering 2pcs | |
| Dental Plate | PROWHEEL PRO-552PP-3 52T | PROWHEEL OUNCE-253A-TT | PROWHEEL OUNCE-253A-TT | PROWHEEL OUNCE-253A-TT | |
| Cushion | YG leather | Selle Royal Memory foam sponge | Selle Royal Memory foam sponge | Selle Royal Memory foam sponge | |
| Stand Up | JL Aluminum alloy foldable | JL Aluminum alloy foldable | JL Aluminum alloy foldable | JL Aluminum alloy foldable | |
| Pedal | WELLGO Folding Alloy pdeal | WELLGO Folding Alloy pdeal | WELLGO Folding Alloy pdeal | WELLGO Folding Alloy pdeal | |
| Seat Tube | ZOOM SP-90/ISO-M Die-casting Alloy / Alloy | ZOOM SP-90/ISO-M Die-casting Alloy / Alloy | ZOOM SP-90/ISO-M Die-casting Alloy / Alloy | ZOOM SP-90/ISO-M Die-casting Alloy / Alloy | |
| Foot Support | URSUS ALLOY ADJUSTABLE KICKSTAND | URSUS ALLOY ADJUSTABLE KICKSTAND | URSUS ALLOY ADJUSTABLE KICKSTAND | URSUS ALLOY ADJUSTABLE KICKSTAND | |
| Rims | AOLI AL-RRY-307 (black) Double level Rim /Alloy 7071（Suitable for 20" ） | BAFANG MAG WHEEL | AOLI AL-RRY-307 (black) Double level Rim /Alloy 7071（Suitable for 20" ） | AOLI AL-RRY-307 (black) Double level Rim /Alloy 7071（Suitable for 20" ） | |
| Handlebar | XUXIANG | ZOOM MTB-AL-345BT FOV/ISO-M Double aluminum extraction | ZOOM MTB-AL-345BT FOV/ISO-M Double aluminum extraction | ZOOM MTB-AL-345BT FOV/ISO-M Double aluminum extraction | |
| Hubs | VP sds3359 32 hole, Disc brake | BAFANG MAG WHEEL | VP sds3359 32 hole, Disc brake | VP sds3359 32 hole, Disc brake | |
| Clamp | ZOOM Custom Alloy 7071 (Size : 27.2) | SARMPOWER Custom Alloy 7071 (Size : 27.2) | SARMPOWER Custom Alloy 7071 (Size : 27.2) | ZOOM Custom Alloy 7071 (Size : 27.2) | |
| Frame | PLUS New Desgin Seat Tube : 450mm Top tube : 564.1mm Rear Tube : φ25.2 | PLUS New Desgin Seat Tube : 450mm Top tube : 564.1mm Rear Tube : φ25.2 | PLUS New Desgin Seat Tube : 450mm Top tube : 564.1mm Rear Tube : φ25.2 | PLUS New Desgin Seat Tube : 450mm Top tube : 564.1mm Rear Tube : φ25.2 | |
| PLUS BLACK/WHITE/GREY/custom made | PLUS BLACK/WHITE/GREY/custom made | PLUS BLACK/WHITE/GREY/custom made | PLUS BLACK/WHITE/GREY/custom made | ||
| Spoke | SAPIM Strong 12G , Antiseptic Electrophoresis | BAFANG MAG WHEEL | SAPIM Strong 12G , Antiseptic Electrophoresis | SAPIM Strong 12G , Antiseptic Electrophoresis | |
| Fender | AOLI Long fender with the alloy holder Alloy 7071 | AOLI Long fender with the alloy holder Alloy 7071 | AOLI Long fender with the alloy holder Alloy 7071 | AOLI Long fender with the alloy holder Alloy 7071 | |
| Package | PLUS Best Carton, with custom cover 7level With Pearl cotton/foam | PLUS Best Carton, with custom cover 7level With Pearl cotton/foam | PLUS Best Carton, with custom cover 7level With Pearl cotton/foam | PLUS Best Carton, with custom cover 7level With Pearl cotton/foam | |
As an experienced electric bicycle manufacturer and supplier from China, PLUS EBIKE always produces high-quality OEM/ODM electric bicycles including mountain e-bike, city e-bike and folding e-bike. Set up service centers in the United Kingdom and Switzerland, and the professional team of PLUS EBIKE provides high-quality and convenient after-sales service at any time. |
| | |

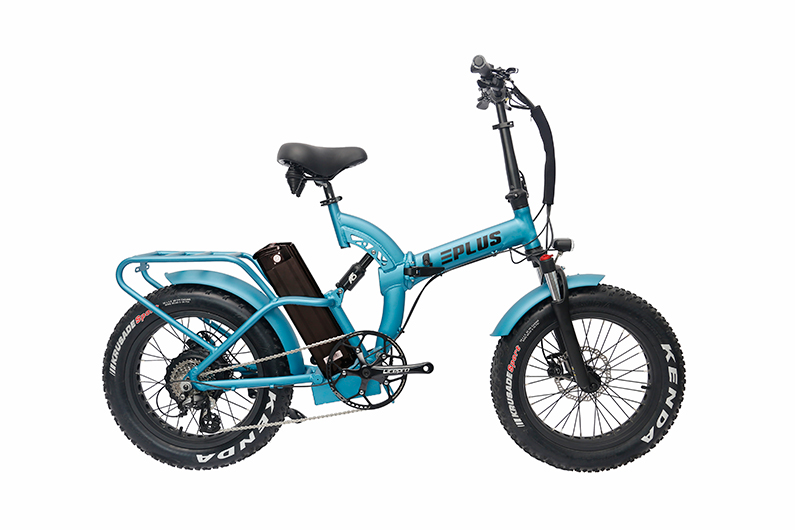

The high-end folding fat tire electric bike PLUS CARRO is more suitable for traveling in the city. The use of internationally renowned brand accessories has passed a number of professional tests such as battery explosion-proof test, uphill test, and electronic control system test. Use strong and pressure-resistant packaging to ensure that the electric vehicle is not damaged during transportation.
