PLUS CAMEL-M

Share to:

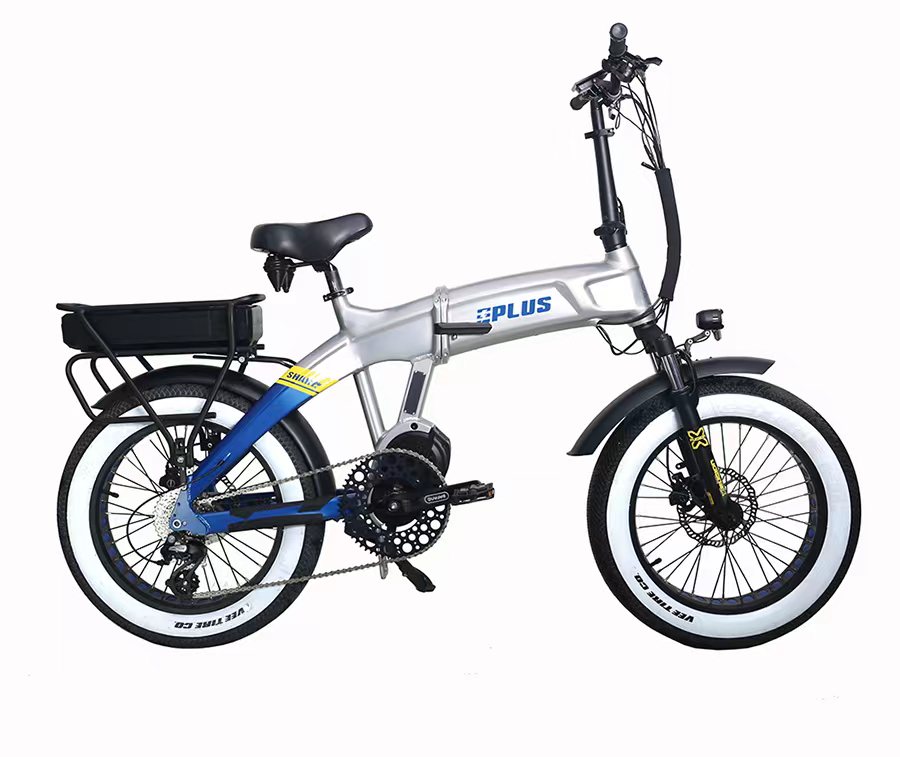

PLUS CAMEL is a sports-style electric bike designed for adventurous explorers. The mid-mounted 1000W motor has super power, tailor-made for you who pursue speed. The extra-large diameter tires provide greater traction (whether in mud or snow) and superior climbing ability. The DNM front fork has a good shock absorber effect. It is like walking on the gravel road and can bring rich riding fun in the rugged forest road. It is very suitable for off-road adventure.
MOTOR:
BATTERY:
Color:
Availability:
Quantity:

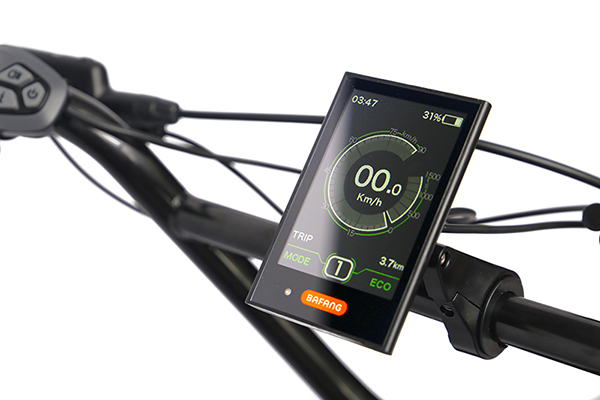

cameld2

display

BAFANG LCD display shows Battery Level Indicator, Current Speed,Maximum Speed, Total Distance, Motor-output Indicator, Assistance Level.

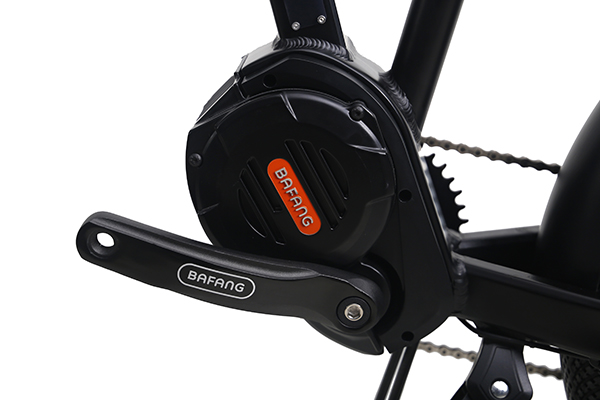

MOTOR - BAFANG - CAMEL M - PRODUCTS - PLUS EBIKE

motor

BAFANG MM G510.750/1000.C

Mid Drive provides 160 N.m of torque for a smooth, powerful ride.

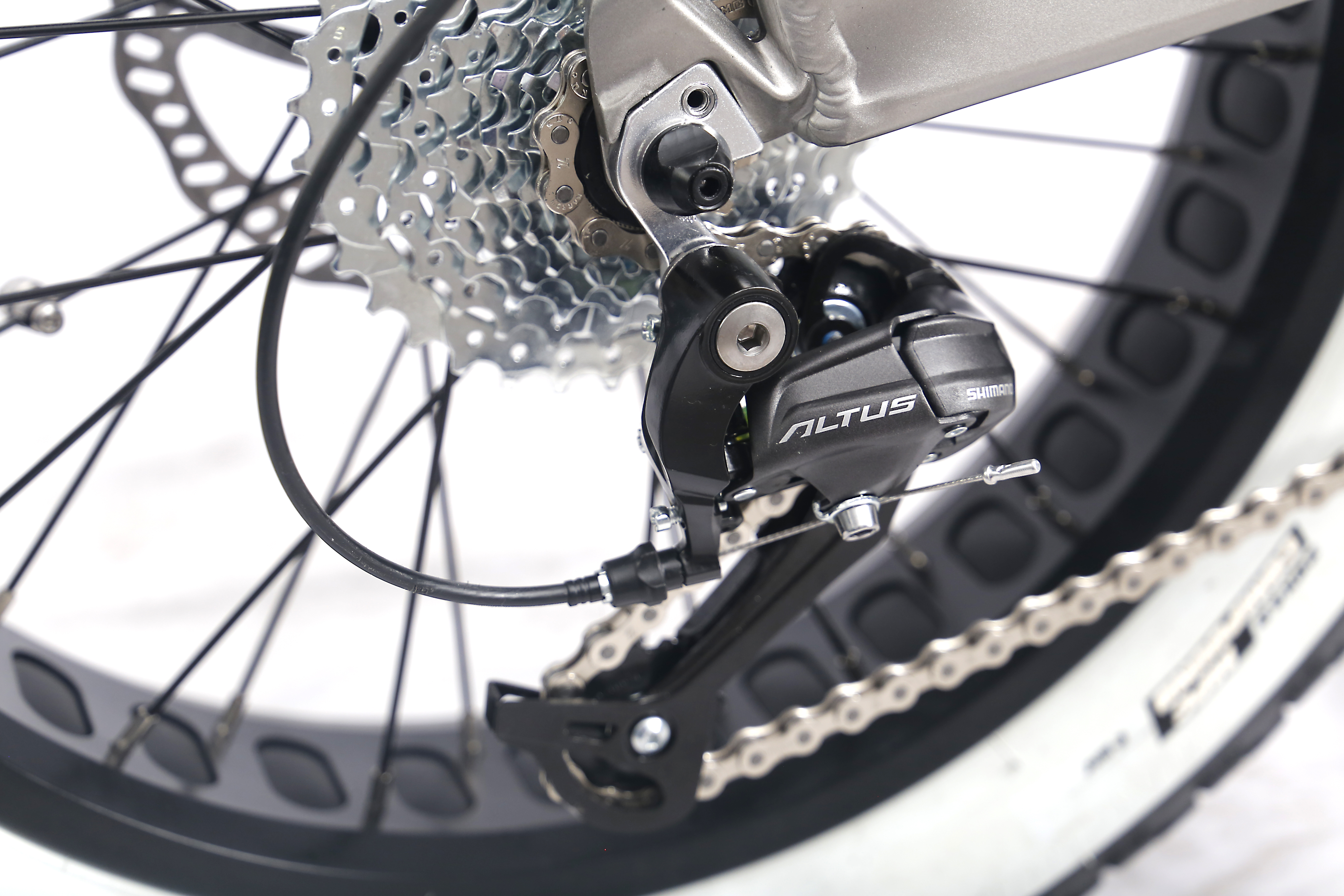

微信图片_20210916173254

DERAILLEUR

  • Super low-profile concept with SHADOW mechanism

  • Wider linkage ensures durability and more precise shifting

  • Quick and easy wheel installation

  • Easy adjustment and maintenance

  • High-level surface treatment

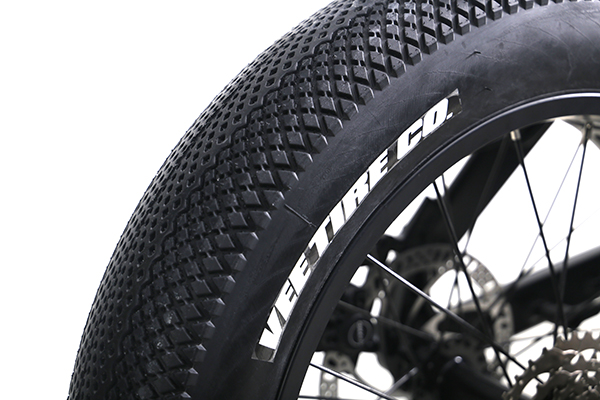

TIRE - VEE - CAMEL M - PRODUCTS - PLUS EBIKE

TIRE

VEE MISSION 20 x 4.0

Designed for all types of cross-country, trail riding and endurance racing, our Mission is one of our most versatile and proven designs. Its chiseled center knobs are fast rolling combined with excellent corning knobs for confident grip and ultimate control no matter where the trail takes you.

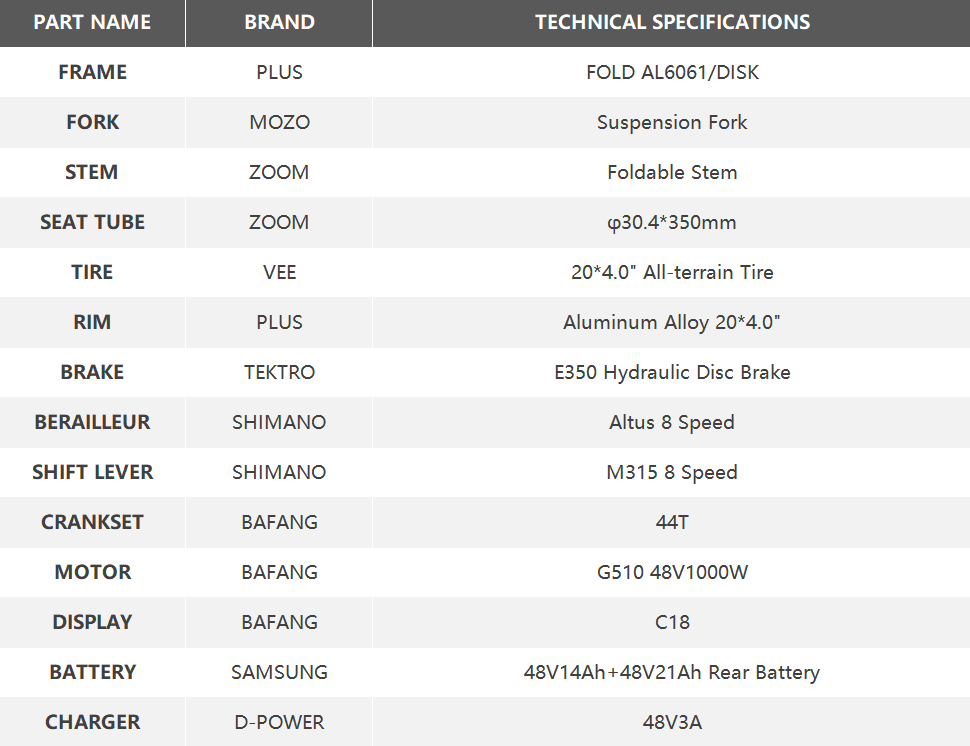

ELECTRIC BIKE COMPONENTS


CAMEL-M
     Fat E-Bike
< ECO   >
    48V1000W
    48V14Ah
< RACING   >
    48V1000W
    48V14AH

E

L

E

C

T

R

I
    C

.

S

Y

S

T

E

M

Motor BAFANG   48V 1000W
    Brushless Rear-Mounted Geared Mid Motor
PLUS   48V 1000W
    Brushless Rear-Mounted Geared Mid Motor
Battery 48V   14Ah SAMSUNG 35E battery core
    Battery box: waterproof improved model
48V   14Ah LG 3500E battery core
    Battery box: waterproof improved model
Display BAFANG   Mid-LCD alloy display

BAFANG   Mid-LCD alloy display

Charger D-POWER   Charger 48V Dedicated
    3A Fast Charger

D-POWER   Charger 48V Dedicated
    2A Fast Charger

Throttle STAR-UNION   Throttle ( Finger Press ) STAR-UNION   Throttle ( Finger Press )
Rear Light SPAN SPAN
Light SPANNIAPA
    KENDO Double Light with Electric bell

SPANNIAPA
    KENDO Double Light

Wire JUNLEI
    Waterproof wire (All connection )
JUNLEI
    Waterproof wire (All connection )

M

A

I

N

. C

O

M

P

ON

ENT

Grip VELO   Alloy Ring Locked handle VELO   Alloy Ring Locked handle
Tire
    (with Inner tube )
VEE   SPEEDSTER (with white script on wall)
    MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI,
VEE   SPEEDSTER (with white script on wall)
    MISSION COMMAND, 20 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI,
Brake Lever TEKTRO   HD-E350  Hydraulic disc brake Lever

TEKTRO   HD-E500  Hydraulic disc brake Lever

Disc Brake TEKTRO   HD-E350

TEKTRO   HD-E500

Brake Pad TEKTRO   System Rotors TR180-24 TEKTRO   System Rotors TR180-24
Transmission SHIMANO   DERAILLEUR TOUNEY 35
    REAR SPEEDS 7
SHIMANO   DERAILLEUR ALTUS
    REAR SPEEDS 7
SHIMANO FREESHEEL MF-TZ21
     14-16-18-20-22-24-28T

SHIMANO   FREESHEEL MF-TZ21
     14-16-18-20-22-24-28T

Trasnsmisstion Protector Trasnsmisstion   Protector
SHIMANO SIS 7-Speed
    Mode : ACERA ALTUS SL- M360
SIS   7-Speed
    Mode : ACERA ALTUS SL- M360
Fork MOZO   MZ-FAT-50 20"Fat Tire Use ( alloy tube ) MOZO   RS-02 20"Fat Tire Use ( hydrulic suspension fork )
Chain KMC   Seven-speed special chain KMC   Seven-speed special chain
B.BCARTRIDGE NECO   B920AL (B920BAL)
    Axle & Alloy Cups, Steel body, Sealed Bering 2pcs
NECO   B920AL (B920BAL)
    Axle & Alloy Cups, Steel body, Sealed Bering 2pcs
Dental Plate BAFANG   BF-552PP-3
    CHAINRING         53T

BAFANG   BF-552PP-3
    CHAINRING         53T

Cushion Selle   Royal Memory foam sponge,
    Model: A230HR1008096 FREEWAY
Selle   Royal Memory foam sponge,
    Model: A230HR1008096 FREEWAY
Stand Up ZOOM
    Mode : MTB-AL-345BT FOV/ISO-M 640mm
ZOOM
    Mode : MTB-AL-345BT FOV/ISO-M 640mm
Pedal WELLGO   Folding Alloy pdeal  F265
    black ,Steel & Alloy
WELLGO   Folding Alloy pdeal  F265
    black ,Steel & Alloy
Seat Tube ZOOM   SP-90/ISO-M
    Die-casting Alloy / Alloy
ZOOM   SP-90/ISO-M
    Die-casting Alloy / Alloy
Foot Support URSUS   ALLOY ADJUSTABLE KICKSTAND
    Mode : WAVE 81
URSUS   ALLOY ADJUSTABLE KICKSTAND
    Mode : WAVE 81
Rims AOLI   AL-RRY-307
    Double level Rim /Alloy 7071(Suitable   for 20" )
AOLI   AL-RRY-307
    Double level Rim /Alloy 7071(Suitable   for 20" )
Handlebar ZOOM   MTB-AL-345BT FOV/ISO-M
    Double aluminum extraction
ZOOM   MTB-AL-345BT FOV/ISO-M
    Double aluminum extraction
Hubs VP   sds3359
    32 hole, Disc brake
VP   sds3359
    32 hole, Disc brake
Clamp ZOOM   Custom Alloy 7071 (Size : 27.2) ZOOM   Custom Alloy 7071 (Size : 27.2)
Frame PLUS   New Desgin
    Seat Tube : 450mm
    Top tube : 564.1mm
    Rear Tube : φ25.2
PLUS   New Desgin
    Seat Tube : 410mm
    Top tube : 524.1mm
    Rear Tube : φ25.2
Spoke SAPIM   Strong 12G, Antiseptic Electrophoresis SAPIM   Strong 12G, Antiseptic Electrophoresis


Fender AOLI   Long fender, Alloy 7071
    with the alloy holder
AOLI   Long fender, Alloy 7071
    with the alloy holder

Package SLY   Best Carton, and with custom cover 7level With Pearl cotton, foam SLY   Best Carton, and with custom cover 7level
    With Pearl cotton, foam



SOLUTION

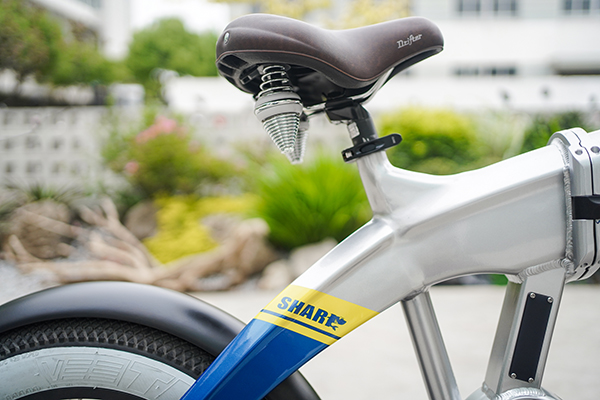

camel-solution

PLUS CAMEL is tailored for you who love adventure. The intelligent color screen LCD display displays real-time information such as the speed of the electric bicycle, battery power, voltage index and other information, and timely feedback of ebike failures, making riding safer. Imported power cells with a battery replacement rate of more than 95% have passed the anti-flammability test, which is safe and secure.

As an experienced electric bicycle manufacturer and supplier from China, PLUS EBIKE always produces high-quality OEM/ODM electric bicycles including mountain e-bike, city e-bike and folding e-bike. The overseas service center professionally handles after-sales problems and agency supply in countries near Europe, and the after-sales is convenient and worry-free.


camel1     camel2     camel3
