PLUS C20

Share to:

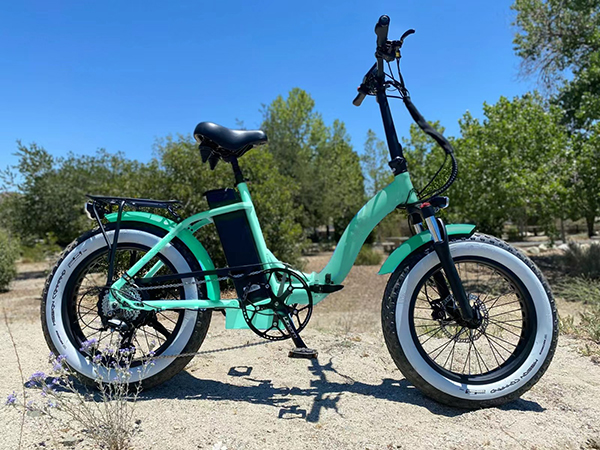

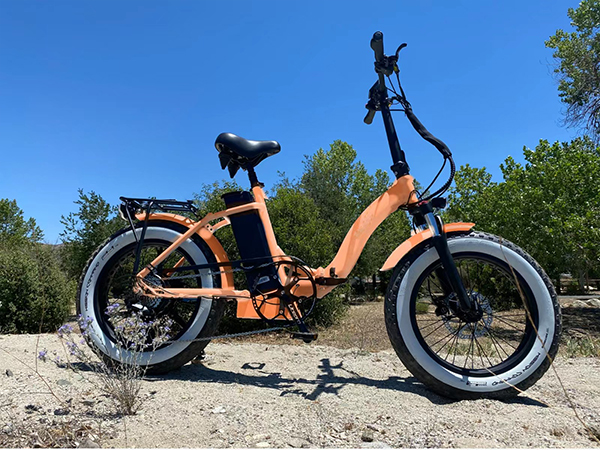

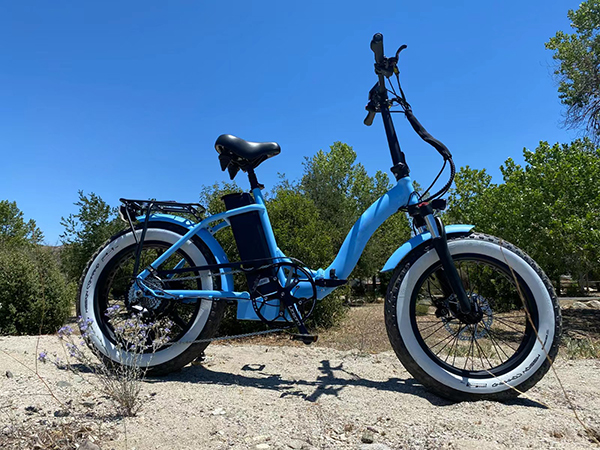

C20 is a high quality folding fat tire electric bike specially designed for female. With most of the wires wrapped into the frame, folding electric bike C20 is concise and beautiful. 20 inch fat tires provide a most comfortable way for leisure urban riding. PLUS EBIKE's high-power controller can be installed, and it can also be compatible with the general low-probability controller on the market. It's street legal in the USA and Europe and no license or registration is required (where applicable, see local laws and regulations).
MOTOR:
BATTERY:
Color:
Quantity:


PLUS-S

小图标

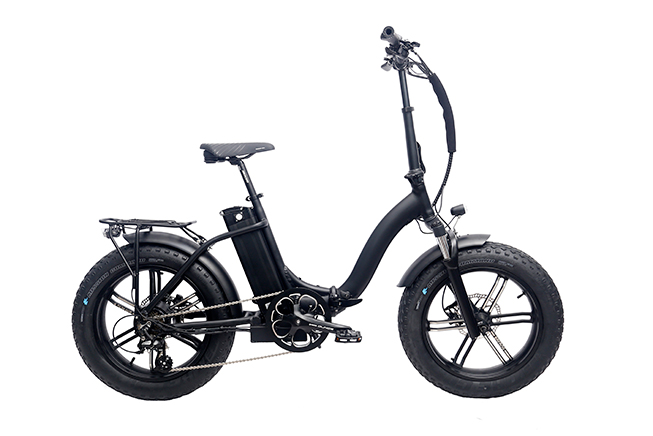

C20-frame

Frame

FOLD 20" / AL6061 / DISK
  • Self-locking folder

      Upgraded safer self-locking folder, double insurance, easy  operation.

  • One-piece forged hook claws

      Designed holes for installing the rear hanger and foot support.

  • Built-in wire

      All wires pass through the inside of the frame.

  • Controller Box

      PLUS EBIKE's high-power controller can be installed, and it can also be compatible with the general low-probability controller on the market.

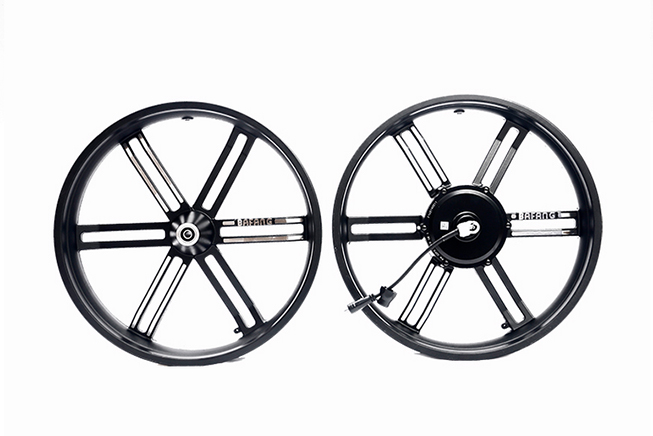

c20-motor

MOTOR

  • BAFANG REAR MOTOR

    Rated Power: 350W/500W/750W/1000W

  • BAFANG ALLOY ONE-WHEEL REAR MOTOR

    Rated Power:750W

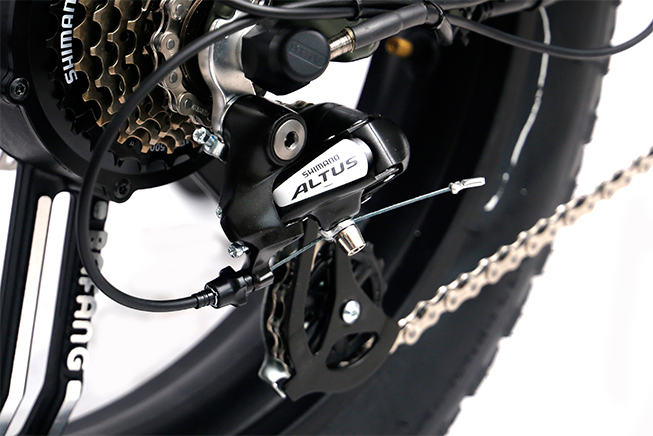

c20-derailleur

DERAILLEUR

  • Super low-profile concept with SHADOW mechanism

  • Wider linkage ensures durability and more precise shifting

  • Quick and easy wheel installation

  • Easy adjustment and maintenance

  • High-level surface treatment

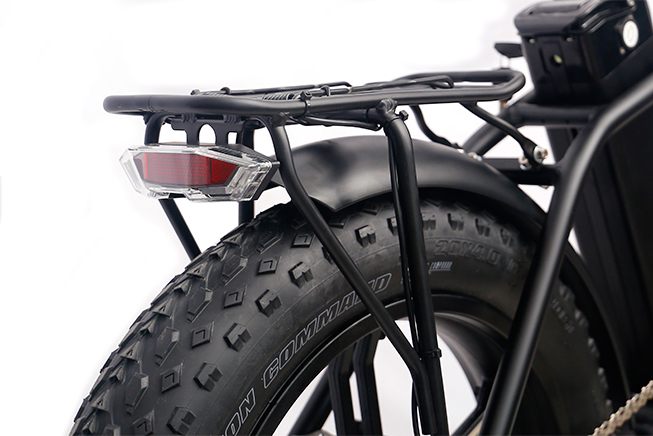

c20-rear-light

REAR LIGHT

The hanger can be fitted with high quality rear light for left and right steering indication and flashing during braking.







ELECTRIC BIKE COMPONENTS

FRAME
FOLD   20"/AL6061/DISK
FORK
SUSPENSION FORK
DERAILLEUR   SHIMANO   ALTUS RD M310DLC 7SPEED
SHIFT LEVER M315   7RC
FREEWHEEL SHIMANO   AMFTZ5007428
SENSOR
PLUS   SPEED SENSOR 12L/24L
MOTOR
BAFANG   250W/350W/500W/750W/1000W
BATTERY
SAMSUNG   INR18650-35E 48V 13Ah/15.6Ah/17.5Ah/21Ah
RIM MAGNESIUM   ALLOY INTEGRATED WHEEL
TIRE KENDA 20 x 4.0
CRANKSET OUNCE   253A CUSTOM MADE
BRAKE TEKTRO   HD-E500
DISPLAY PLUS   LCD DISPLAY KD986
SEAT SELLE   ROYAL NEW LOOKIN A238U
HANDLEBAR ZOOM   MTB-/AL-/155/ISO-C/M
STEM ZOOM-FB-D308NL/RB-8/ISO-C




SOLUTION

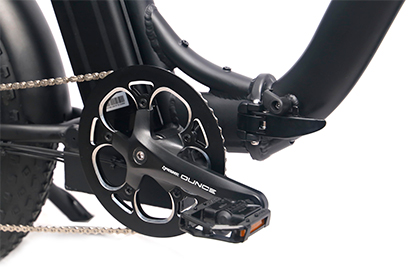

C20-SOLUTIONThe high-end folding fat tire electric bike PLUS C20 is more suitable for traveling in the city. The use of internationally renowned brand accessories has passed a number of professional tests such as battery explosion-proof test, uphill test, and electronic control system test. Use strong and pressure-resistant packaging to ensure that the electric vehicle is not damaged during transportation.

As an experienced electric bicycle manufacturer and supplier from China, PLUS EBIKE always produces high-quality OEM/ODM electric bicycles including mountain e-bike, city e-bike and folding e-bike. Set up service centers in the United Kingdom and Switzerland, and the professional team of PLUS EBIKE provides high-quality and convenient after-sales service at any time.



C20-1

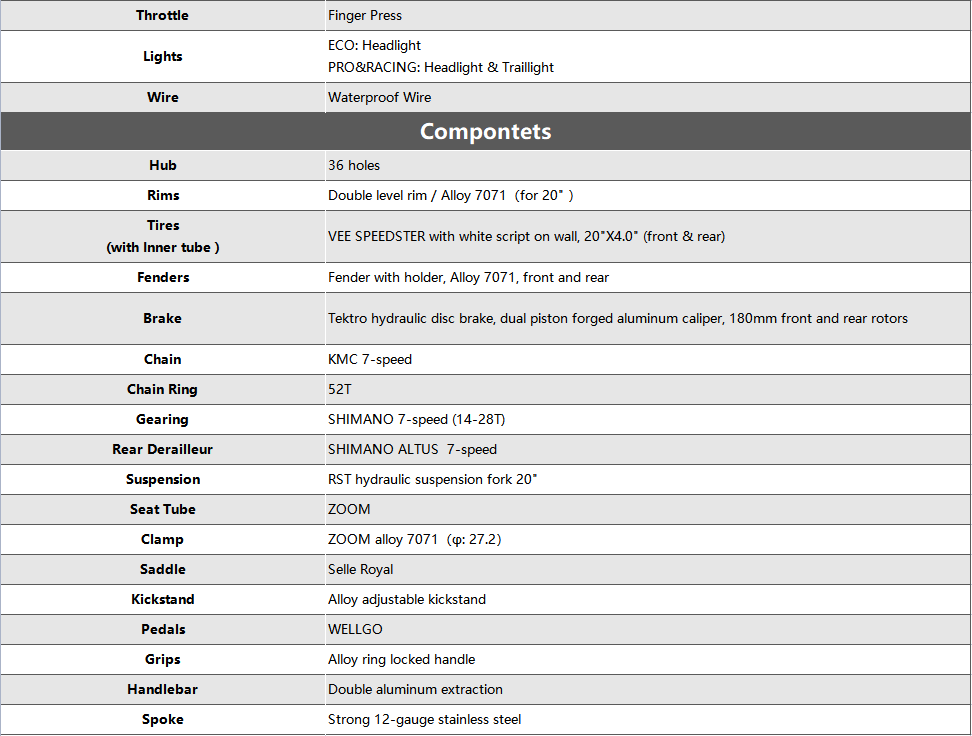

C20-2
C20-3
