PLUS CARRO-S

Share to:

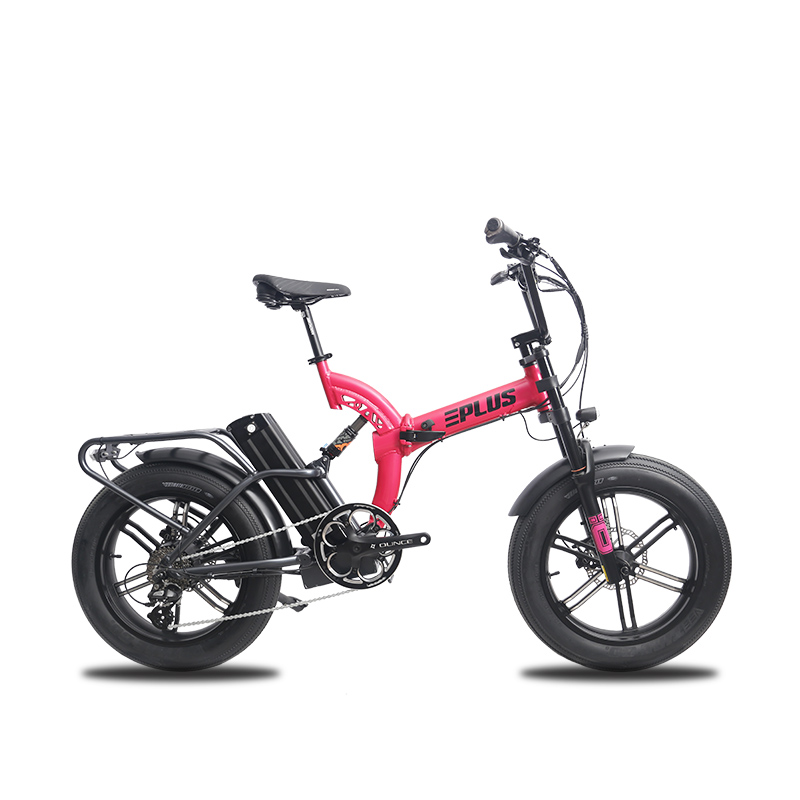

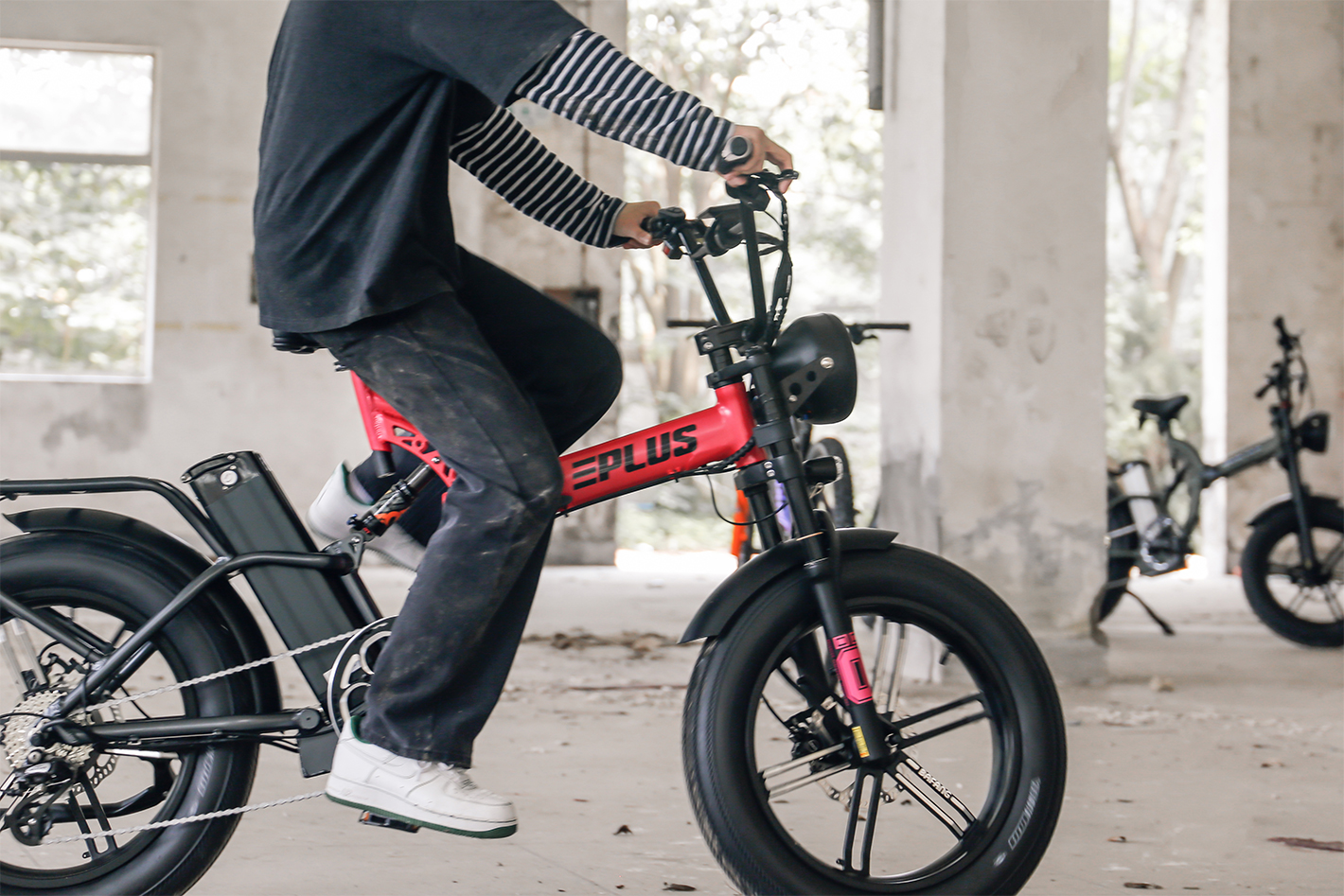

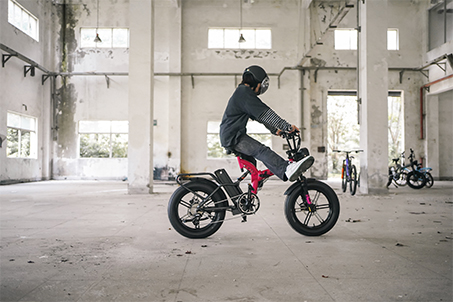

PLUS CARRO-S, upgrade version of PLUS CARRO, is a high- quality foldable professional fat tire electric bike. All wires pass through the inside of the frame. PLUS EBIKE's high-power controller can be installed, and it can also be compatible with the general low-probability controller on the market. It’s street legal in the USA and Europe and no license or registration is required (where applicable, see local laws and regulations).
MOTOR:
BATTERY:
Color:
Quantity:


小图标

11

Frame

FOLD 20" / AL6061 / DISK
  • Self-locking folder
    Upgraded safer self-locking folder, double insurance, easy  operation.

  • One-piece forged hook claws
    Designed holes for installing the rear hanger and foot support.

  • Built-in wire
    All wires pass through the inside of the frame.

  • Controller Box
    PLUS EBIKE's high-power controller can be installed, and it can also be compatible with the general low-probability controller on the market.




22

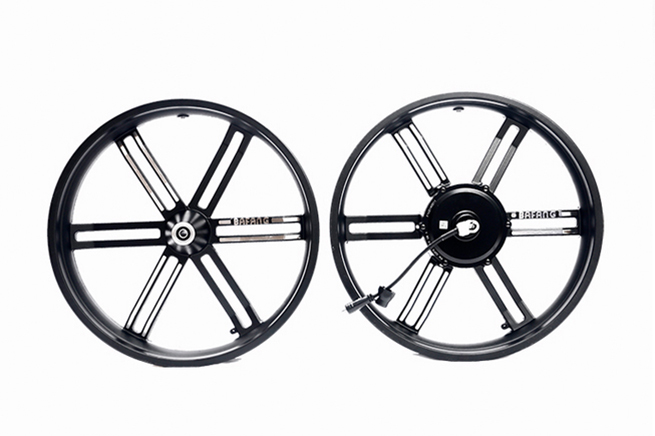

MOTOR

  • BAFANG REAR MOTOR

    Rated Power: 750W

  • BAFANG ALLOY ONE-WHEEL REAR MOTOR

    Rated Power:750W




33

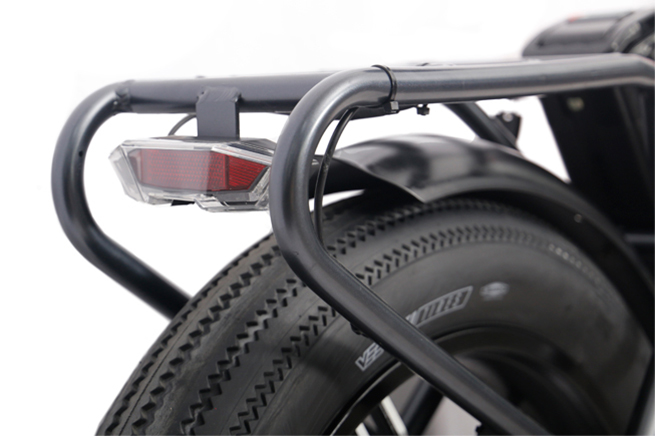

REAR LIGHT

Connected with the controller, the rear light stays on during riding and brightens when braking.




44

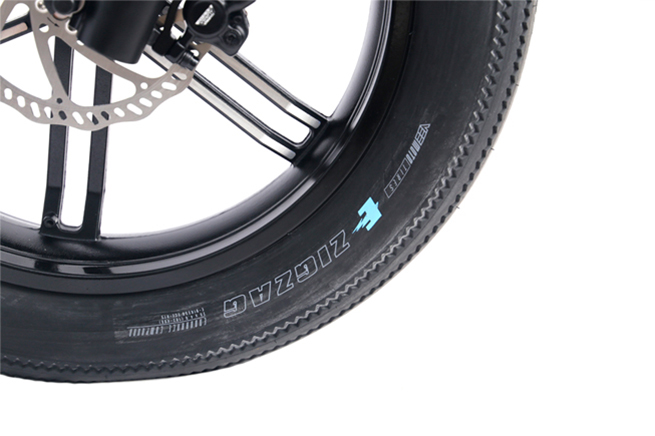

TIRE

VEE ZIGZAG has a classically unique style compared with other fat tires. With its straight-line knobs and white walls, you can outfit your cruiser-style bicycle with a modern tire.

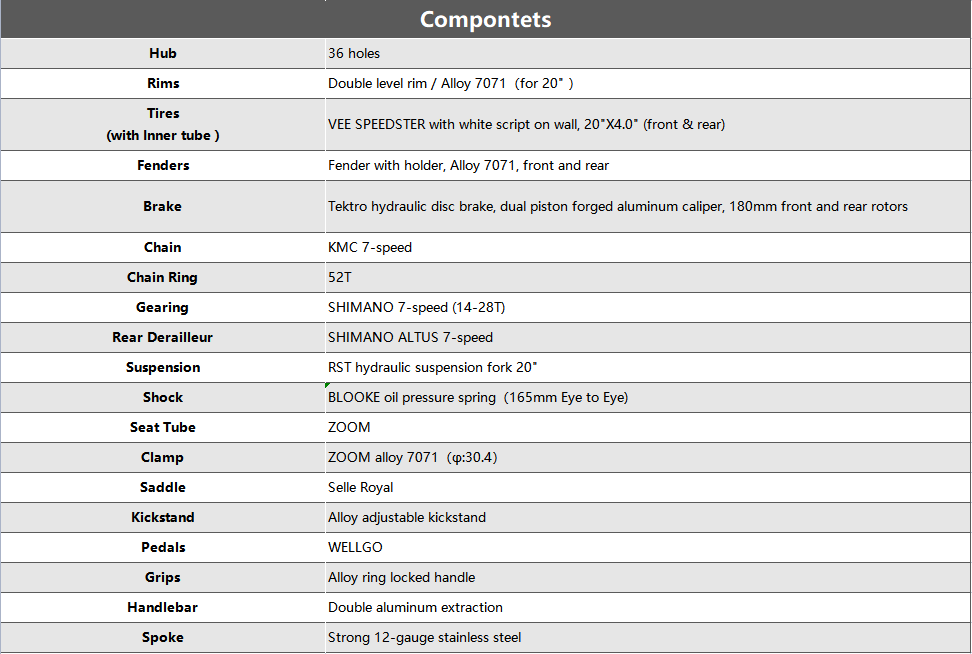

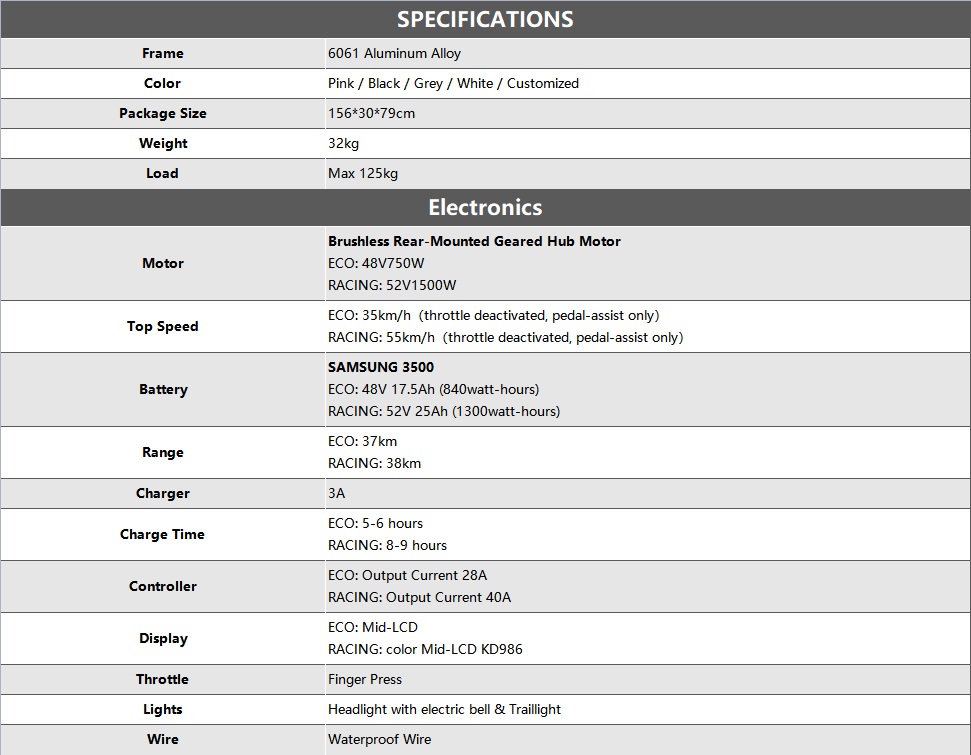

ELECTRIC BIKE COMPONENTS

FRAME
FOLD   20"/AL6061/DISK
FORK
DUAL SENSPENSION FORK

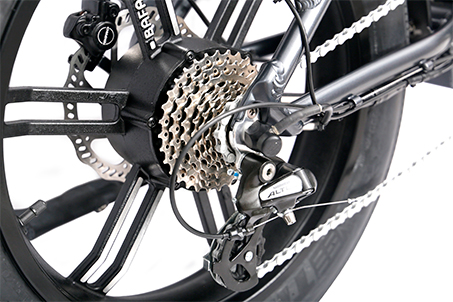

DERAILLEUR   SHIMANO   ALTUS RD M310DLC 8SPEED
SHIFT LEVER M315   8RC
FREEWHEEL DNP 11-34T
SENSOR
PLUS   SPEED SENSOR 12L/24L
MOTOR
BAFANG   750W
BATTERY
SAMSUNG   INR18650-35E 48V 13Ah/15.6Ah/17.5Ah/21Ah
RIM MAGNESIUM   ALLOY INTEGRATED WHEEL
TIRE VEE ZIGZAG 20 x 4.0
CRANKSET OUNCE   253A CUSTOM MADE 53T
BRAKE TEKTRO   HD-E500
DISPLAY PLUS   LCD DISPLAY KD986
SEAT SELLE   ROYAL NEW LOOKIN A238U
HANDLEBAR BMX
STEM ALUMINUM ALLOY





SOLUTION


The high-end foldable fat tire electric bike PLUS CARRO-S is more suitable for traveling in the city. The use of internationally renowned brand accessories has passed a number of professional tests such as battery explosion-proof test, uphill test, and electronic control system test. Use strong and pressure-resistant packaging to ensure that the electric vehicle is not damaged during transportation.

As an experienced electric bicycle manufacturer and supplier from China, PLUS EBIKE always produces high-quality OEM/ODM electric bicycles including mountain e-bike, city e-bike and folding e-bike. Set up service centers in the United Kingdom and Switzerland, and the professional team of PLUS EBIKE provides high-quality and convenient after-sales service at any time.
