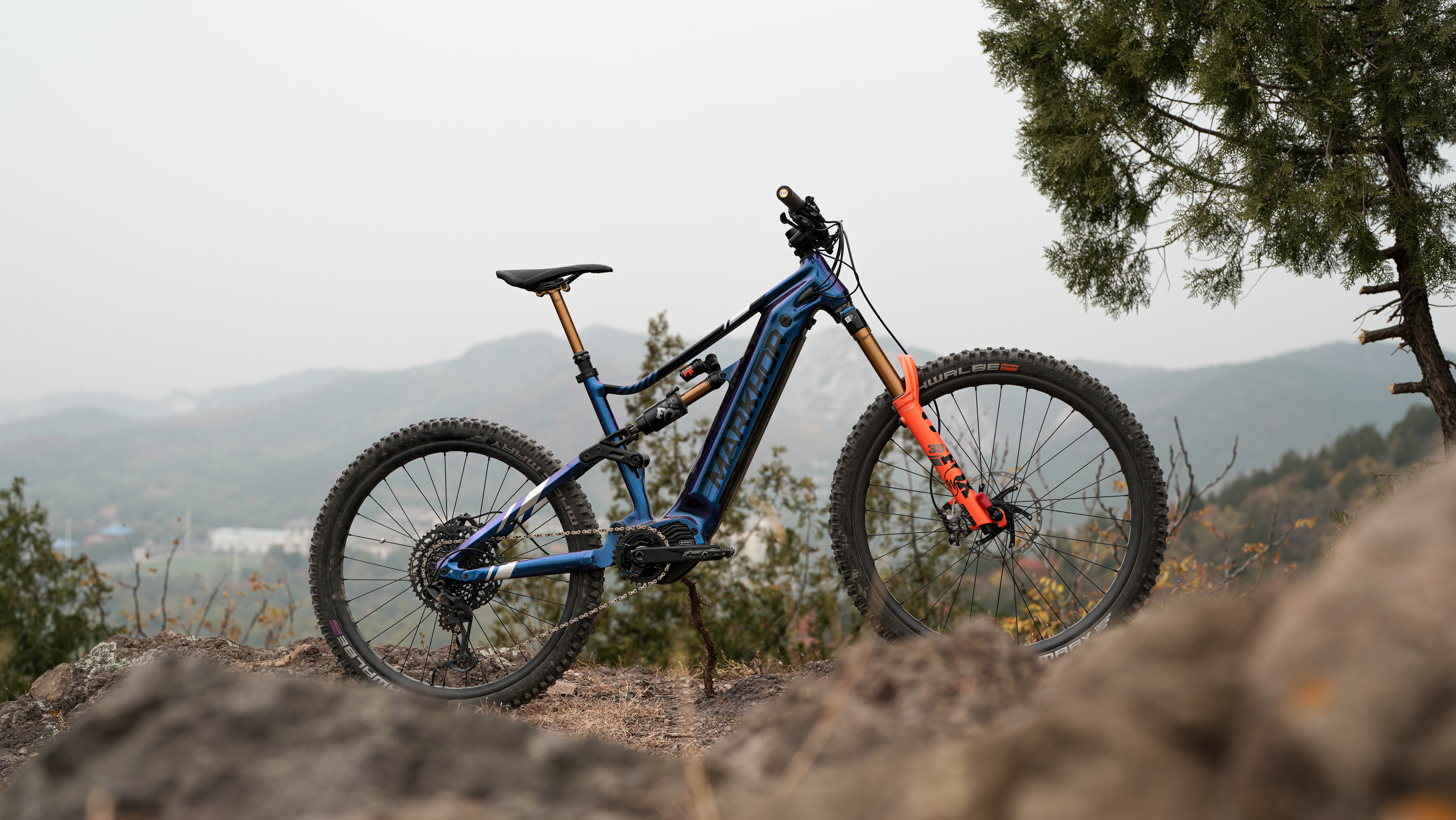

All-new ROCKET is an electric mountain bike equipped with mid drive 500 watts motor. Assembled professional FLOAT X shock and suspension fork FOX 38, ROCKET is designed for mountain riding. 29 inch extra-large diameter tires provide greater traction and superior climbing ability. ROCKET must the best choice for mountain bikers.
MOTOR: | |
---|---|
BATTERY: | |
Color: | |
Availability: | |
Quantity: | |
M | L | |
① Seat Tube | 440mm | 470mm |
② Seat Tube Angle | 71.5° | 71.5° |
③ Head Tube | 130mm | 130mm |
④ Head Tube Angl | 64° | 64° |
⑤ Bottom Bracket Offset | -8 | -8 |
⑥ Chain Stay | 470mm | 470mm |
⑦ Top Tube (horizontal) | 610mm | 638mm |
⑧ Length Specified Fork +Headset | 585mm | 585mm |
⑨ Offset Specified Fork | 44mm | 44mm |
⑩ Length Specified Shock | 250/230mm | 250/230mm |
★ Travel Specified Shock | 75/65mm | 75/65mm |
⑪ Rear Wheel Travel | 187.4/167.3mm | 187.4/167.3mm |
★ Maximum Allowed Front Fork Travel | 180mm | 180mm |
⑫ Wheelbase | 1263mm | 1291mm |
⑬ Reach | 440.8mm | 468mm |
⑭ Stack | 631mm | 631mm |
LINKAGEAs the most important part connecting shock to the frame, the replaceable conversion link makes it possible to switch easily between 230 and 250 shocks. Usually longer shocks provide a greater rear wheel travel, thus more aggressive riding may be allowed to deal with more complex road conditions. | turning point SCREWSStainless steel forged screws instead of the aluminum alloy ones that most brands use are adopted at turning point. Although losing the advantage in weight, they are increased in strength to cope with the strong torque of the motor. |
internal cable routineFor optimal protection, all cables (wires, shift cables and brake cables) are routed almost completely through the frame. Through the cable hole at the head tube, they enter the internal tubes to achieve the most effective protection. The motor seat, through further improvement, may prevent the squeezing or pulling of the cables during compression. | four linkOur outstanding suspension technology provides sensitivity off the top, with good mid-stroke support and plenty of end-stroke progressivity. The nice pop helps get the bike airborne whenever wanted, while the end-stroke progressivity makes sure the rear shock doesn't bottom out even on monster jumps. The high amount of anti-squat keeps the rear suspension neutral and improves pedal efficiency. |
Rocket | |||
E L E C T R IC . S Y S T E M | Motor | BAFANG G521.M600 48V500W 120N.m | BAFANG G521.M600 48V500W 120N.m |
Battery | BAFANG 48V17.5AH 840WAH 65Pcs 3500E Battery Cell (SAMSUNG) | BAFANG 48V17.5AH 840WAH 65Pcs 3500E Battery Cell (SAMSUNG) | |
Display | BAFANG DP-C24 With Bluetooth Smart Phone System App | BAFANG DP-C24 With Bluetooth Smart Phone System App | |
Charger | PLUS Charger 48V Dedicated EU plug Input frequency range(Hz) 47 -63 | PLUS Charger 48V Dedicated EU plug Input frequency range(Hz) 47 -63 | |
Throttle | BAFANG Throttle ( Finger Press ) | BAFANG Throttle ( Finger Press ) | |
Wire | BAFANG Waterproof Plug | BAFANG Waterproof Plug | |
M A I N . C O M P O N E NT | Grip | VELO Locked-on Grips | FIFTY-FIFTY Locked-on Grips |
Tire | VEE MISSION 27.5X2.3, MPC-MULTIPLE PURPOSE COMPOUND, 27TPI, WB | SCHWALBE MAGIC MARY DH PRO 29x2.6 | |
Brake Lever | TEKTRO M745 Open system, 4 piston, forged Aluminum Body | MAGURA MT5 Carbotecture, Flip-Flop-Design Lever Blade, 4 Pistons, Aluminium Hydraulic | |
Disc Brake | |||
Brake Pad | TR-36 Ø 180mm Steel | Storm HC Ø 203 mm 182 g Steel | |
Transmission | SHIMANO DEORE M4100 10-S Freewheel: 11-46T 10-S | SRAM SX EAGLE 12-S Freewheel : PG1210 11-50T | |
Fork | MAXXLITE TTF 27.5/29 Inch 39.8mm 100*15mm BOOST Travel :140mm | ROCKSHOX, YARI, EMTB Pro 27.5/29 Inch 39.8mm 110*15mm BOOST Travel : 160 mm | |
Rear Shock | KKE BA-27RC E-E: 230mm Travel: 63 mm | ROCKSHOX DELUXE SELECT E-E: 230mm Travel: 65 mm | |
Dental Plate | BAFANG 34T | BAFANG 34T | |
Seat Tube | EXA ADJUST SEAT TUBE 30.9 MM , L : 395 MM , TRAVEL : 125MM | EXA ADJUST SEAT TUBE 30.9 MM , L : 395 MM , TRAVEL : 125MM | |
Seat | SR 2093URN Riding position : Sport Cover : PVC Rail :Steel | SR VENTO TEMPO ARGO R5 265/265 mm | |
Rims | PLUS MTB Pro Double Lver Alloy Rim 32 Hole, 13G | SUN RINGLE DUROC 35 Double Lver Alloy Rim 32 Hole, 13G | |
Handlebar | ZOOM MTB-AL-E/3712BT/ISO-M/DIN+(M) Φ35 780mm 12mm | FIFTY-FIFTY 7050-T6 35mm UP 5°、BACK 7°、780mm | |
STEM | ZOOM TDS-RD605 35mm ,28.6mm | FIFTY-FIFTY FF35 35mm 28.6mm | |
Hubs | QUANTA 32H,13G, BOOST | KOOZER 32H,13G, BOOST | |
Clamp | PROMAX Ø 36.4, Alloy, Adjust | PROMAX Ø 36.4, Alloy, Adjust | |
Spoke | SPAIM 13G, Size From 27.5 / 29 inch | SPAIM 13G, Size From 27.5 / 29 inch |
Choose internationally renowned brand accessories, and pass a number of professional tests such as battery explosion-proof test, uphill test, and electronic control system test. The 7-layer corrugated paper is used for packaging, which is strong and compressive to ensure that the electric vehicle is not damaged during transportation. As an experienced electric bicycle manufacturer and supplier from China, PLUS EBIKE always produces high-quality OEM/ODM electric bicycles including mountain e-bike, city e-bike and folding e-bike. Service centers are set up in the UK and Switzerland, and the professional team of PLUS EBIKE provides high-quality and convenient after-sales service at any time. |
