PLUS CRUISER

Share to:

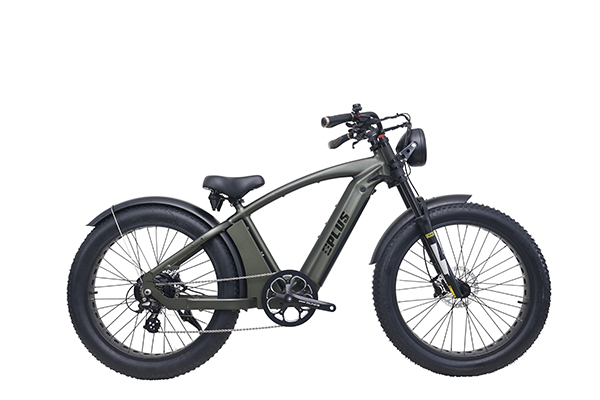

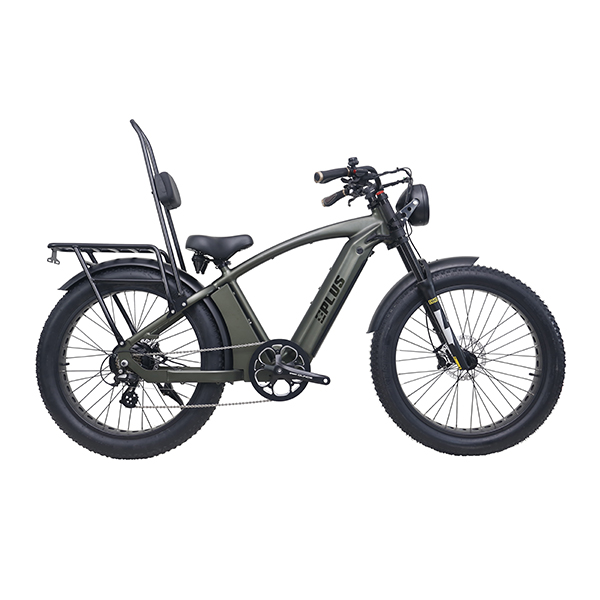

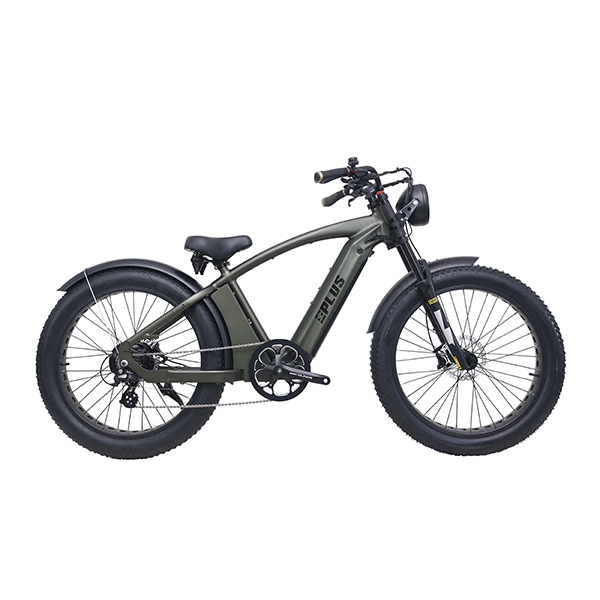

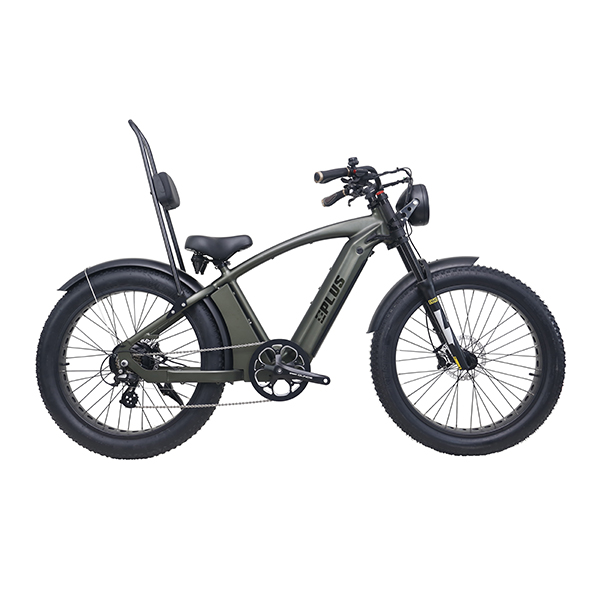

CRUISER, named after “sport-cruiser”, is a fast electric bike with its 1000 watts motor. Large capacity battery makes it possible for urban adventurers to go long-distance riding. Fully adjustable suspension fork, together with 26 inch fat tires improve riding comfortableness. The retro model made from aluminum alloy looks special and cool.

MOTOR:
BATTERY:
Color:
Availability:
Quantity:

CRUISER


CRUISER D03

tires

ZigZag has a classically unique style compared other fat tires. With its straight-line knobs and white walls, you can outfit your cruiser-style bicycle with a modern tire. Fast or slow riding, this tire is always a true show-stopper!

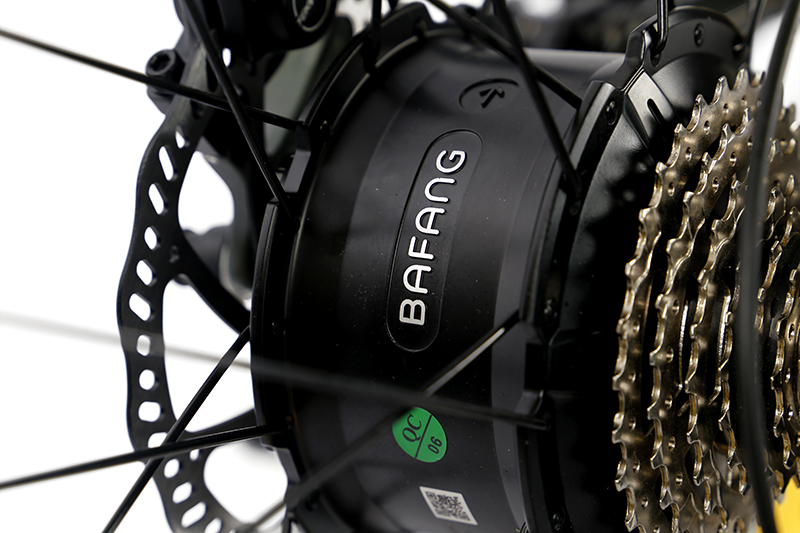

CRUISER D04

motor

BAFANG REAR 750W/1000W Gear motor with 85N.m torque. Get you a top speed of 61km/h.



CRUISER D05

SEAT

SELLE ROYAL DRIFTER with spring suspension.

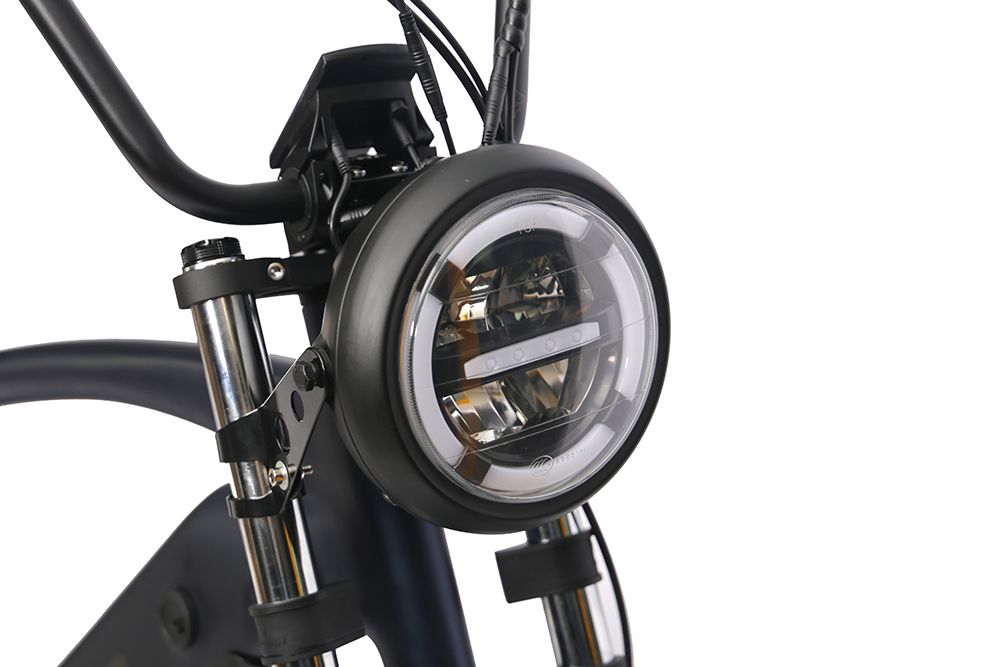

CRUISER D07

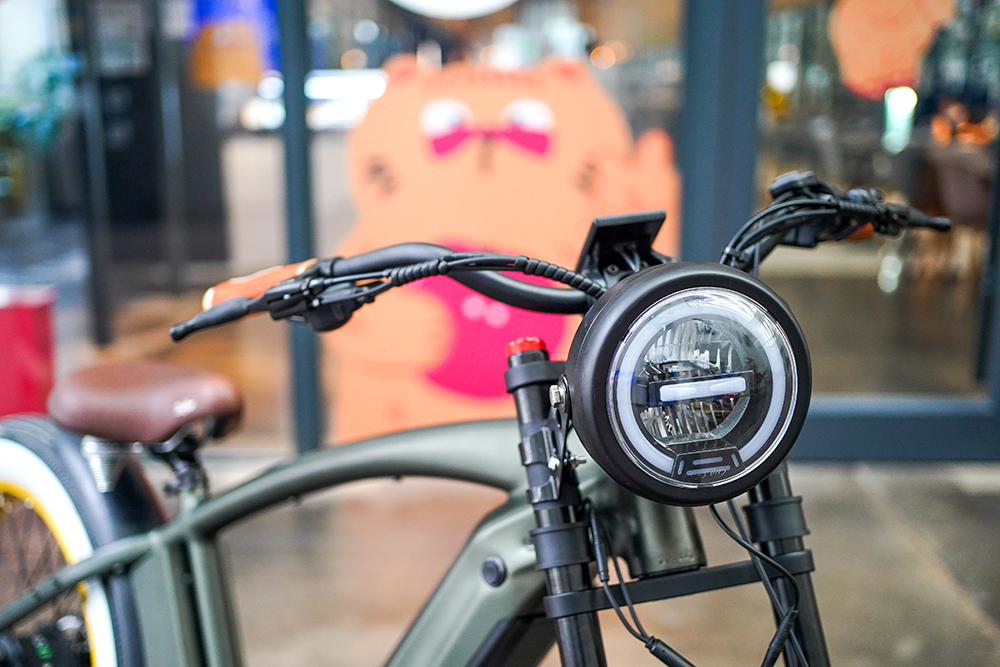

LIGHT

4000LM super bright front light, uniform light.

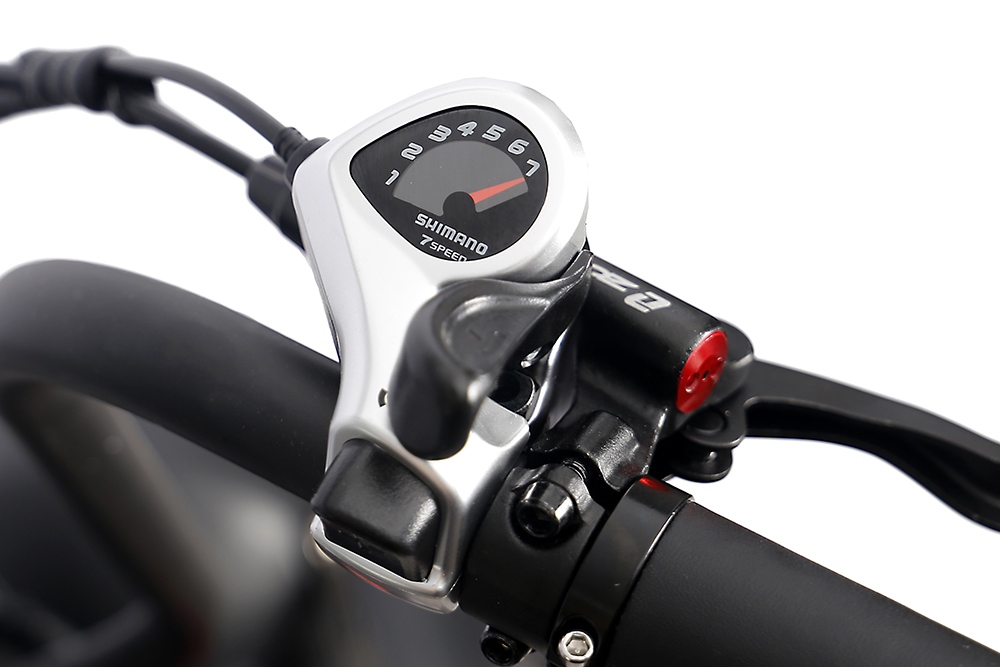

CRUISER D06

DERAILLUR

For reliable mountain bike shifting, SHIMANO's SL-M315 RAPIDFIRE shift lever is suited to quick shifting, giving riders the ability to downshift three gears in one stroke.




CRUISER D08

BRAKE

Tektro HD-E500 Hydraulic Disc with 180mm Rotors, Dual-Piston Calipers, Tektro HD-E500 Three-Finger Adjustable Levers with Motor Inhibitors and Shift Detection.

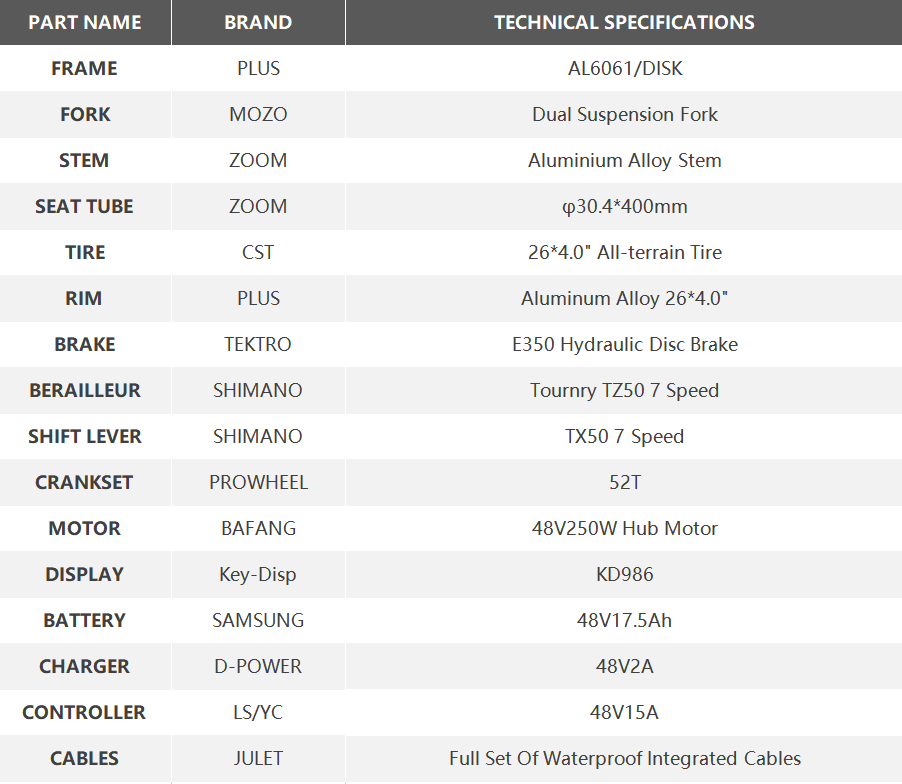

ELECTRIC BIKE COMPONENTS


PLUS CRUISER
     Fat E-Bike
< ECO   >
    48V500W
    48V13Ah
< RACING   >
    48V1000W
    48V17.5AH

E

L

E

C

T

R

I
    C

.

S

Y

S

T

E

M

Motor AKM   48V 500W
    Brushless Rear-Mounted Geared Hub Motor
BAFANG   48V1000W
    Brushless Rear-Mounted Geared Hub Motor
Battery 48V   13 Ah
    SAMSUNG 35E battery core
    Battery box: waterproof improved model
48   V 17.5 Ah
    LG 3500E battery core
    Battery box: waterproof improved model
Controller SARMPOWER
    Exclusive design —— waterproof controller
    Output current 25A
SARMPOWER
    Exclusive design —— waterproof controller
    Output current 25A
Display KDS(OEM   Of BAFANG)
    Mid-LCD  alloy display
KDS(OEM   Of BAFANG)
    Mid-LCD  alloy display

Charger D-POWER
    Charger 48V Dedicated
    2A Fast Charger

D-POWER
    Charger 48V Dedicated
    2A Fast Charger

Sensor MS
    Double hall Integrated sensor 24 T
MS
    Double hall Integrated sensor 24 T
Throttle STAR-UNION
    Throttle ( Finger Press )
STAR-UNION
    Throttle ( Finger Press )
Rear Light SPAN SPAN
Button STAR-UNION
    Approvals/RoHS
STAR-UNION
    Approvals/RoHS
Light SPANNIAPA
    KENDO Double Light

SPANNIAPA
    KENDO Double Light

Wire JUNLEI
    Waterproof wire (All connection )
JUNLEI
    Waterproof wire (All connection )

M

A

I

N

. C

O

M

P

O

N

ENT

Grip CH
    Alloy Ring Locked handle
VELO
    Alloy Ring Locked handle
Tire
    (with Inner tube )
KENDA   26 X 4.0 VEE   ZIAZAG with white script on wall
    MISSION COMMAND, 26 X 4.0, MPC - MULTIPLE PURPOSE COMPOUND ,72 TPI,

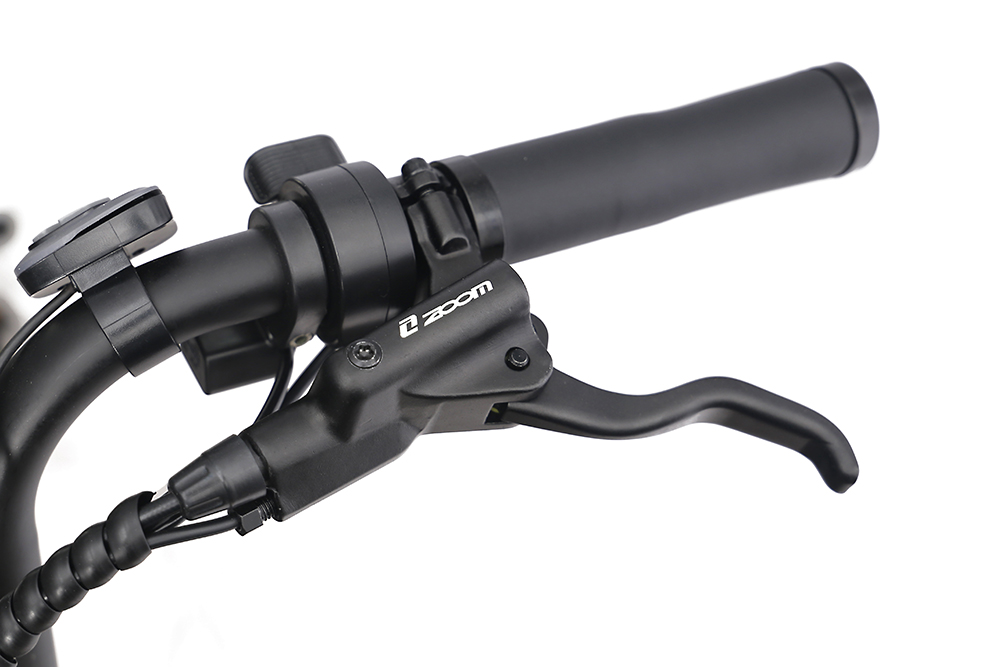

Brake Lever ZOOM  BL-06E

TEKTRO   HD-E500
    Hydraulic disc brake Lever
Disc Brake ZOOM   DB-220

TEKTRO   HD-E500

Brake Pad TR160
    System Rotors
TEKTRO   TR180-24
    System Rotors
Transmission SHIMANO   DERAILLEUR TZ500 SHIMANO   DERAILLEUR ALTUS  RDM 310
SHIMANO FREEWHEEL MF-TZ21
     14-16-18-20-22-24-28T

SHIMANO   FREEWHEEL MF-TZ21
     14-16-18-20-22-24-28T

Trasnsmisstion Protector Trasnsmisstion   Protector
SHIMANO SIS 7-Speed  TX50
     ACERA ALTUS SL- M360
SHIMANO   SIS 7-Speed  RDM-315
    Mode : ACERA ALTUS SL- M360
Fork MOZO   26"Fat Tire Use ( alloy tube ) MOZO   26"Fat Tire Use ( hydrulic suspension fork  )

Chain KMC   Seven-speed special chain KMC   Seven-speed special chain
B.BCARTRIDGE NECO   B920AL (B920BAL)
    Axle & Alloy Cups, Steel body, Sealed Bering 2pcs
NECO   B920AL (B920BAL)
    Axle & Alloy Cups, Steel body, Sealed Bering 2pcs
Dental Plate PROWHEEL   52T PROWHEEL   OUNCE-253A-53T

Cushion JST Selle   Royal Memory foam sponge,
    Model: A0A5UR0
Stand Up ZOOM ZOOM
Pedal WELLGO   Alloy pdeal WELLGO   Alloy pdeal
Seat Tube ZOOM   SP-90/ISO-M ZOOM   SP-90/ISO-M
Foot Support URSUS   ALLOY ADJUSTABLE KICKSTAND URSUS   ALLOY ADJUSTABLE KICKSTAND
Rims STAR   AL-RRY-307
    Double level Rim /Alloy 7071(Suitable   for 20" )
STAR   AL-RRY-307
    Double level Rim /Alloy 7071(Suitable   for 20" )
Handlebar ZOOM   MTB-AL-345BT FOV/ISO-M
    Double aluminum extraction
ZOOM   MTB-AL-345BT FOV/ISO-M
    Double aluminum extraction
Hubs VP  sds3359
    32 hole, Disc brake
VP  sds3359
    32 hole, Disc brake
Clamp ZOOM   Custom Alloy 7071( Size : 27.2) ZOOM   Custom Alloy 7071( Size : 27.2)
Spoke SAPIM   Strong 12G ,
    Antiseptic Electrophoresis
SAPIM   Strong 12G ,
    Antiseptic Electrophoresis

Fender AOLI   Long fender,Alloy 7071
    with the alloy holder
AOLI   Long fender,Alloy 7071
    with the alloy holder

Package SLY   Best Carton with custom cover 7level
    With Pearl cotton/foam
SLY   Best Carton with custom cover 7level
    With Pearl cotton/foam



SOLUTION

P_MG_8850

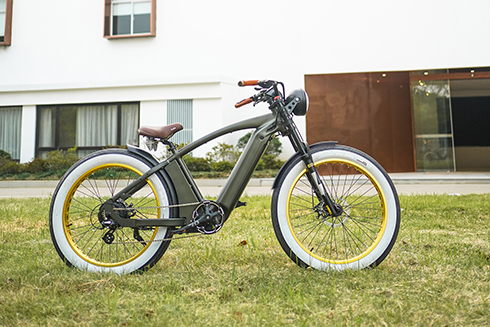

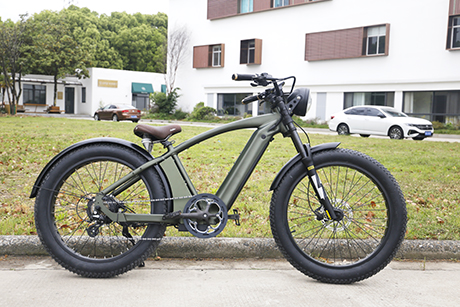

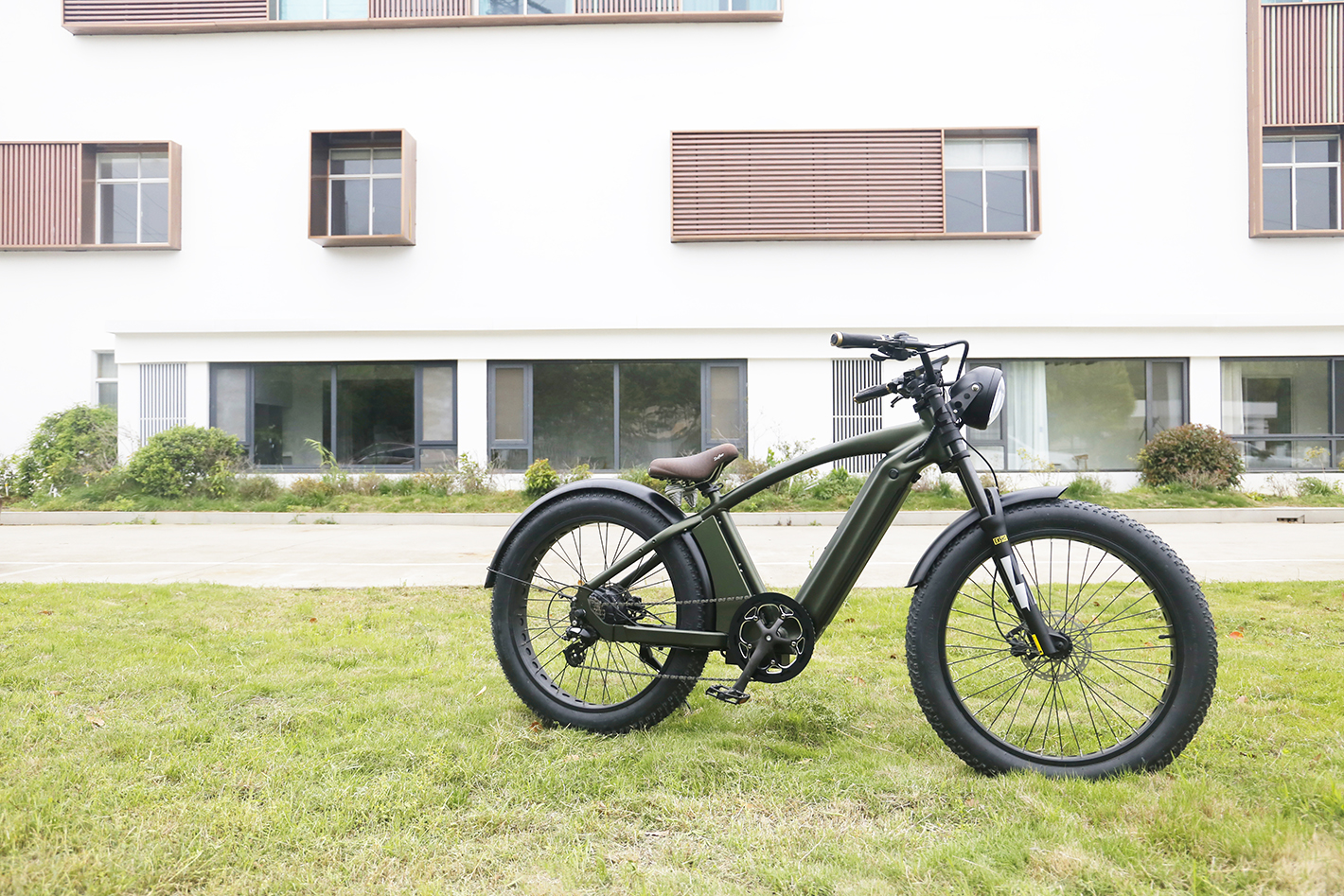

The luxury retro-comfortable ultra-long-life fat tire electric bike CRUISER can easily ride a variety of terrains such as mountains, snow, and beaches. Choose internationally renowned brand accessories, and pass a number of professional tests such as battery explosion-proof test, uphill test, and electronic control system test. The 7-layer corrugated paper is used for packaging, which is strong and compressive to ensure that the electric vehicle is not damaged during transportation.

As an experienced electric bicycle manufacturer and supplier from China, PLUS EBIKE always produces high-quality OEM/ODM electric bicycles including mountain e-bike, city e-bike and folding e-bike. Service centers are set up in the UK and Switzerland, and the professional team of PLUS EBIKE provides high-quality and convenient after-sales service at any time.



P_MG_8872


_MG_9474

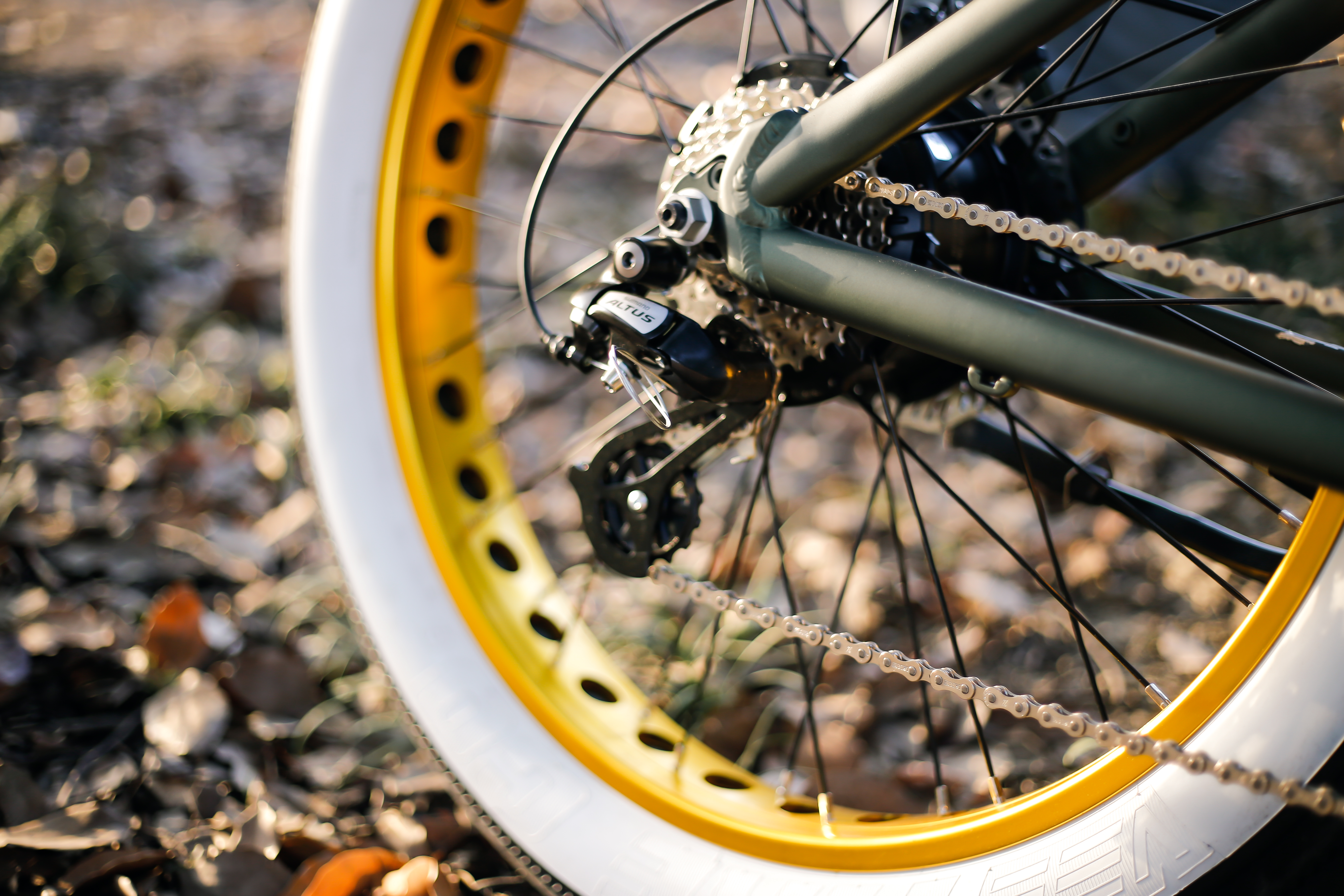

_MG_9505
