You are here: Home » Products » E-BIKE » PLUS F20
This product has been off the shelf!
PLUS F20 PLUS F20
PLUS F20 PLUS F20
PLUS F20 PLUS F20
PLUS F20 PLUS F20
PLUS F20 PLUS F20

loading

PLUS F20

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

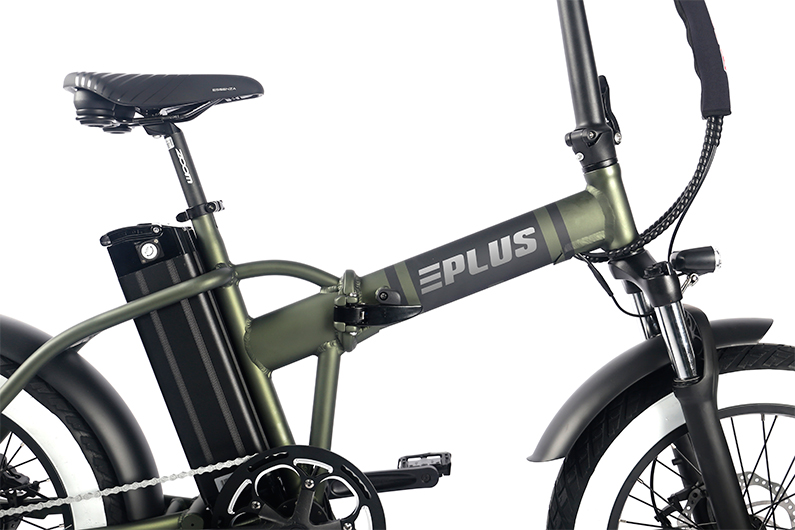

PLUS F20 (Internal Cable Routing) is a high quality folding professional fat tire electric bike. All wires pass through the inside of the frame. PLUS EBIKE's high-power controller can be installed, and it can also be compatible with the general low-probability controller on the market. It's street legal in the USA and Europe and no license or registration is required (where applicable, see local laws and regulations).
MOTOR:
48V 750W
48V 1000W(F&R 500W)
BATTERY:
48V 17.5Ah
48V 21Ah
Color:
BLACK
DARK BLUE
CUSTOMIZED
Availability:

F20-T

小图标

F20-T-FRAME

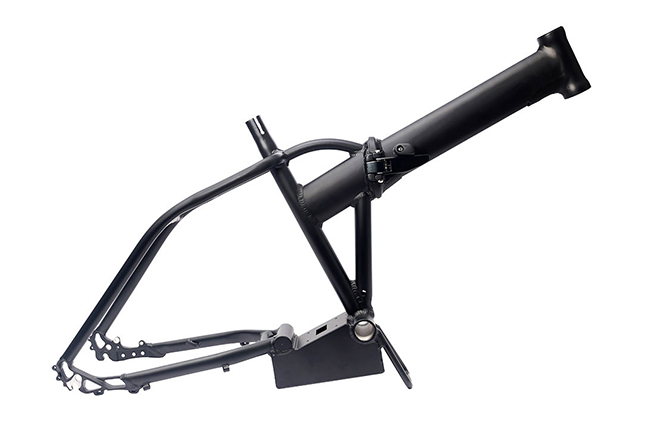

Frame

FOLD 20" / AL6061 / DISK

  • Self-locking folder
    Upgraded safer self-locking folder, double insurance, easy  operation.

  • One-piece forged hook claws
    Designed holes for installing the rear hanger and foot support.

  • Built-in wire
    All wires pass through the inside of the frame.

  • Controller Box
    PLUS EBIKE's high-power controller can be installed, and it can also be compatible with the general low-probability controller on the market.

MOTOR

MOTOR

  • BAFANG REAR MOTOR

    Rated Power: 350W/500W/750W/1000W

  • BAFANG ALLOY ONE-WHEEL REAR MOTOR

    Rated Power:750W



P_MG_9767

BATTERY

SAMSUNG LI-ION BATTERY

MODEL:SILVER FISH

Standerd:48V 17.5Ah
Option: 48V 13Ah / 21Ah
P_MG_9770

Front FoRk

When you ride an electric bike to quickly respond to every curve, down and uphills, MOZO suspension fork bring you to get the most exciting riding fun.

  • Light, safe and easy operating design.

  • Suspension function could be locked directly from the knob on the fork crown.

  • Just one easy turning on the fork knob to makes your suspension fork goes rigid.

  • Hydraulic rebound adjust offer the wide rangeoof damping performance to meet the riding demand.

935a0e9885010cb3479d5811bb5288e

DISPLAY

KD986

E-bike Intelligent LCD display

Waterproof Rating: IP67

Display Type：HIGH Luminance TFT

Voltage：48v

PAS Level：0-5
F20-T-deralleur

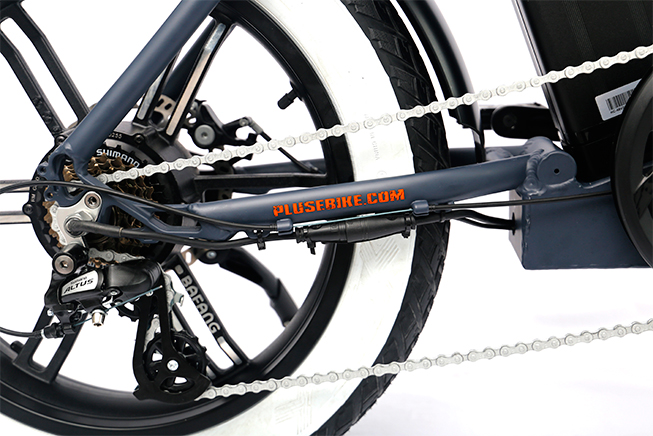

Derailleur

  • Super low-profile concept with SHADOW mechanism

  • Wider linkage ensures durability and more precise shifting

  • Quick and easy wheel installation

  • Easy adjustment and maintenance

  • High-level surface treatment

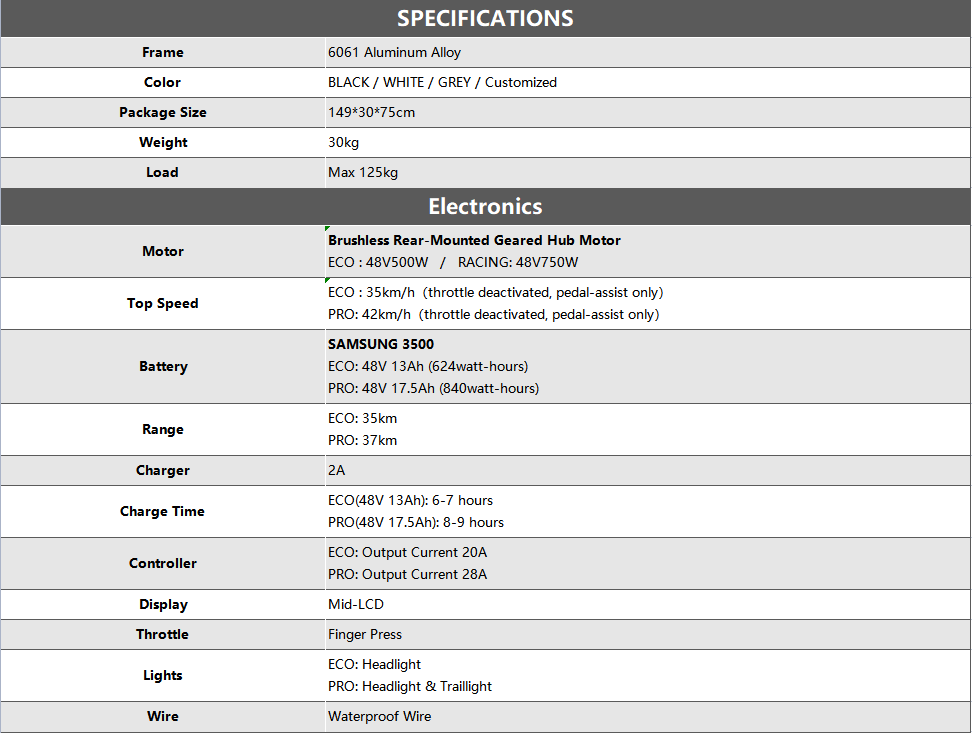

ELECTRIC BIKE COMPONENTS

F20 1

F20 2



SOLUTION

P_MG_9791

The high-end foldable fat tire electric bike PLUS F20 is more suitable for traveling in the city. The use of internationally renowned brand accessories has passed a number of professional tests such as battery explosion-proof test, uphill test, and electronic control system test. Use strong and pressure-resistant packaging to ensure that the electric vehicle is not damaged during transportation.

As an experienced electric bicycle manufacturer and supplier from China, PLUS EBIKE always produces high-quality OEM/ODM electric bicycles including mountain e-bike, city e-bike and folding e-bike. Set up service centers in the United Kingdom and Switzerland, and the professional team of PLUS EBIKE provides high-quality and convenient after-sales service at any time.


P_MG_9774
P_MG_9786
P_MG_9796
